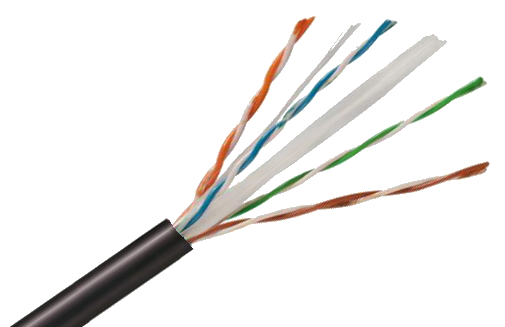

U/UTP Cat6 PE Outdoor Cable

U/UTP Cat6, 4 pairs, PE Jacket; 24AWG/23AWG BC; 250Mhz, complied with EN50173, ANSI/TIA-568.2-D, ISO/IEC11801

Detailed description

Description:

Unshielded Copper cable, 4 pairs, category 6, solid
Application: horizontal wiring in LAN
Cable is used for indoor installation
Meets ANSI/TIA-568.2-D, ISO/IEC11801

Technical characteristics:

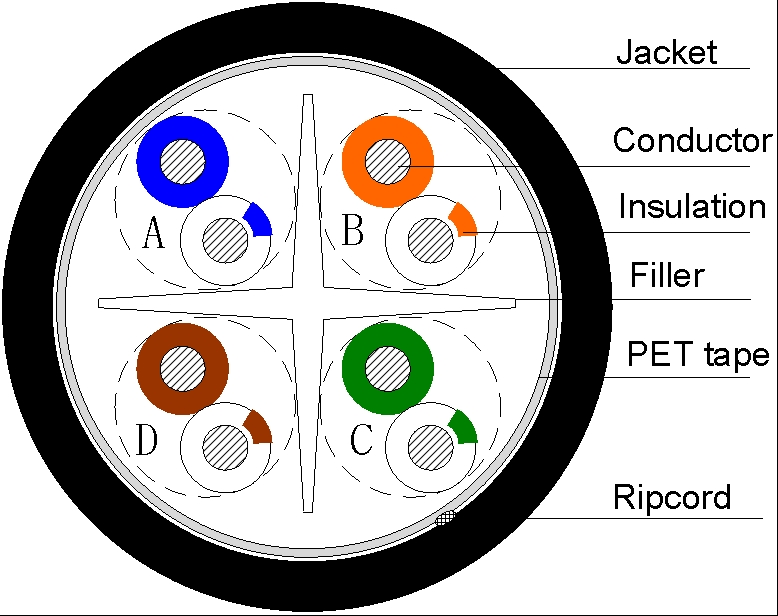

Conductor: annealed bare copper 24AWG/23AWG
Identification:
   - Blue-White/Blue,
   - Orange-White/Orange,
   - Green-White/Green,
   - Brown-White/Brown
4 twisted pairs with spacer (HDPE)
Jacket: PE
Outer cable diameter: 5.8±0.3 mm
Minimum bend radius: 8xO while installation, 6xO while vertical cabling, 4xO while horizontal cabling
Standard package: 305m(1000ft)

Frequency, MHz	RL	Attenuation, dB	NEXT, dB	PSNEXT, dB	ELFEXT, dB	PSELFEXT, dB
Electrical characteristics

1.0	20.0	2.4	74.3	72.3	67.8	64.8
4.0	23.0	3.8	65.3	63.3	55.8	52.8
8.0	24.5	5.3	60.8	58.8	49.7	46.7
10.0	25.0	6.0	59.3	57.3	47.8	44.8
16.0	25.0	7.6	56.3	54.3	43.7	40.7
20.0	25.0	8.5	54.8	52.8	41.8	38.8
25.0	24.3	9.5	53.3	51.3	39.8	36.8
31.25	23.6	10.7	51.9	49.9	37.9	34.9
62.5	21.5	15.4	47.4	45.4	31.9	28.9
100.0	20.1	19.8	44.3	41.3	27.8	24.8
200.0	18.0	29.0	39.8	37.8	21.8	18.8
250.0	17.3	32.8	38.3	36.3	19.8	16.8

Conductor resistance at 20°C (68°F)				9.38 Ohm/100 m (2.9 Ohm/100 ft)
DC Resistance Unbalance				5%
Pair-to-Ground Capacitance Unbalance				330 pF/100 m (101 pF/100 ft)
Impedance 0.772-100 MHz				85-115 Ohm
Mutual Capacitance				5.6 nF/m (1.7 nF/ft)
Spark Test				2.5 kV
