110102. FTP Cat5e

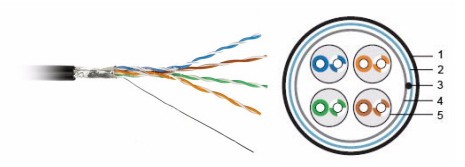

FTP Cat5e, 4 pairs, PVC/PE/LSOH Jacket; CM/CMR/CMP grade; 4×2×0.51 BC + OD 1.02 PE + PET + 0.4 TC + Al + Rip Cord + OD 6.0 PVC; complied with EN50173,TIA/EIA568C.2, ISO11801 100Mhz, EN50173,TIA/EIA568C.2, ISO11801

Detailed description

Description:

Application: Horizontal communication cable
Shielded Copper cable, 4 pairs, category 5e, solid
Cable is used for outdoor installation

Materials:

Conductive material: wire made of soft annealed electrolytic copper
Conductor insulation: HDPE
The cable jacket: black PE
An aluminum tape shield is helically applied over the cable core with a minimum overlap of 25% or 0.19" (5 mm), thickness – 0.001" (0.025 mm), width – 0.78" (20 mm)

Technical characteristics:

Conductor diameter: 0.51 mm (0.02") (24 AWG)
Insulated conductor diameter: 0.035" ± 0.001" (0.9 ± 0.02 mm)
Outer cable diameter: 0.28" ± 0.008" (7 ± 0.2 mm)
Jacket thickness: 0.65 mm (0.025")
Minimum bend radius: 4 outer cable diameters
Conductor elongation: 14% minimum
Operating temperature: -40°C – +60°C (-40°F – +140°F)
Weight per 1000 ft (304.8 m): 10.7 kg (23.59 lbs)
Standard package: 500 m (1640 ft)
Rip cord has a breaking strength of 22 lbs (98 N)
Shield: aluminum foil

Electrical characteristics

Frequency, MHz

Attenuation, dB

NEXT, dB

PSNEXT, dB

ELFEXT, dB

PSELFEXT, dB

0.772

1.8

67.0

64.0

1.0

20.0

2.0

65.3

62.3

63.8

60.8

4.0

23.0

4.0

56.3

53.3

51.7

48.7

8.0

24.5

5.8

51.8

48.8

45.7

42.7

10.0

25.0

6.5

50.3

47.3

43.8

40.8

16.0

25.0

8.2

47.3

44.3

39.7

36.7

20.0

25.0

9.3

45.8

42.8

37.7

34.7

25.0

24.3

10.4

44.3

41.3

35.8

32.8

31.25

23.6

11.7

42.9

39.9

33.9

30.9

62.5

21.5

17.0

38.4

35.4

27.8

24.8

100.0

20.1

22.0

35.3

32.3

23.8

20.8

Conductor resistance at 20°C (68°F)

9.38 Ohm/100 m (2.9 Ohm/100 ft)

DC Resistance Unbalance

Pair-to-Ground Capacitance Unbalance

330 pF/100 m (101 pF/100 ft)

Impedance 0.772-100 MHz

85-115 Ohm

Mutual Capacitance

5.6 nF/m (1.7 nF/ft)

Spark Test

2.5 kV
