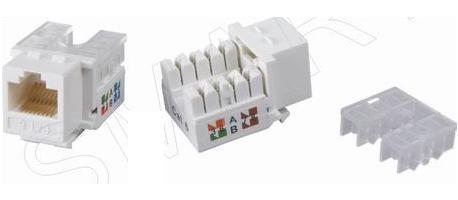

110910. CAT.6 RJ45 8p8c UTP Unshielded 90 degree 110 IDC Keystone Jack
  • 110910. CAT.6 RJ45 8p8c UTP Unshielded 90 degree 110 IDC Keystone Jack

110910. CAT.6 RJ45 8p8c UTP Unshielded 90 degree 110 IDC Keystone Jack

CAT.6 RJ45 8p8c UTP Unshielded 90 degree 110 IDC Keystone Jack
Detailed description

CAT.6 RJ45 8p8c UTP Unshielded 90 degree 110 IDC Keystone Jack


Features:

Housing: High-impact Flame Retardant Polycarbonate,UL94V-0

Spring Wire: Phosphor Bronze With Gold-plated 3u-50u
IDC Contact: Phosphor Bronze
Insertion life:≥1000 mating cycles
Operating Temperature Range : -60℃ to 80℃
IDC Accept: 22-26 AWG
Wire Scheme: T568A/B
Insulation Resistance: 500Ω
Current Rating: 1.5Amps
DC Resistance: 0.1 ohm MAX
Voltage: 150 VAC MAX
Plug Retention Force: 89N


Package:
400PCS in a carton
Carton Measurement: L53CM*W32CM*H23
