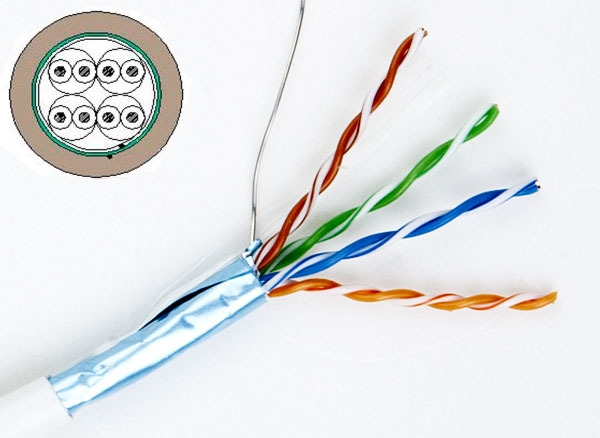

F/UTP Cat5e LSZH

F/UTP Cat5e, 4 pairs, LSZH Jacket; CPR-Eca, Dca, Cca, B2ca grade; 24AWG BC; complied with EN50173, ANSI/TIA-568.2-D, ISO/IEC11801

Detailed description

Description:

Application: Horizontal communication cable
Shielded Copper cable, 4 pairs, category 5e, solid
Cable is used for indoor installation

Materials:

Conductive material: wire made of soft annealed electrolytic copper
Conductor insulation: HDPE
The cable jacket: LSZH(CPR-Eca, Dca, Cca, B2ca)
An aluminum tape shield is helically applied over the cable core with a minimum overlap of 25% or 0.19" (5 mm), thickness – 0.001" (0.025 mm), width – 0.78" (20 mm)

Technical characteristics:

Conductor diameter: 24 AWG
Outer cable diameter: 5.9 ± 0.3 mm
Minimum bend radius: 4 outer cable diameters
Conductor elongation: 14% minimum
Drain-wire Material: Tinned Copper
Operating temperature: -40°C – +60°C (-40°F – +140°F)
Standard package: 305 m (1000 ft)
Rip cord has a breaking strength of 22 lbs (98 N)
Shield: aluminum foil

Electrical characteristics

Frequency, MHz

Attenuation, dB

NEXT, dB

PSNEXT, dB

ELFEXT, dB

PSELFEXT, dB

0.772

1.8

67.0

64.0

1.0

20.0

2.0

65.3

62.3

63.8

60.8

4.0

23.0

4.0

56.3

53.3

51.7

48.7

8.0

24.5

5.8

51.8

48.8

45.7

42.7

10.0

25.0

6.5

50.3

47.3

43.8

40.8

16.0

25.0

8.2

47.3

44.3

39.7

36.7

20.0

25.0

9.3

45.8

42.8

37.7

34.7

25.0

24.3

10.4

44.3

41.3

35.8

32.8

31.25

23.6

11.7

42.9

39.9

33.9

30.9

62.5

21.5

17.0

38.4

35.4

27.8

24.8

100.0

20.1

22.0

35.3

32.3

23.8

20.8

Conductor resistance at 20°C (68°F)

9.38 Ohm/100 m (2.9 Ohm/100 ft)

DC Resistance Unbalance

Pair-to-Ground Capacitance Unbalance

330 pF/100 m (101 pF/100 ft)

Impedance 0.772-100 MHz

85-115 Ohm

Mutual Capacitance

5.6 nF/m (1.7 nF/ft)

Spark Test

2.5 kV
