110202. FTP Cat6

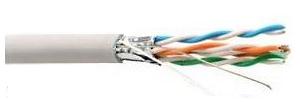

FTP Cat6, 4 pairs, PVC/PE/LSOH Jacket; CM/CMR/CMP grade; 4×2×0.575 BC + OD 1.18 PE + Cross + PET + 0.4 TC + Al + Rip Cord + OD 7.2 PVC; 250Mhz, complied with EN50173,TIA/EIA568C.2, ISO11801

Detailed description

Description:

Shielded Copper cable, 4 pairs (separated), category 6, solid, with drain wire
Application: Horizontal communication cable
Cable is used for indoor installation

Technical characteristics:

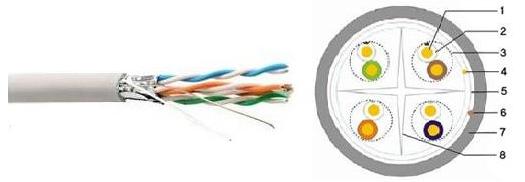

Conductor diameter: 0.57 mm (0.022") (23 AWG)
Insulated conductor diameter: 1.09 ± 0.06 mm (0.043" ± 0.002")
Drain wire diameter: 0.53 mm (0.021")
Outer cable diameter: 7.2 ± 0.3 mm (0.276" ± 0.012")
Jacket thickness: 0.55 mm (0.028")
Shield thickness: 0.04 mm (0.016")
Minimum bend radius: 8 outer cable diameters
Conductor elongation: 15% minimum
Operating temperature: -20°C - +75°C (-4°F - +167°F)
Rip cord has a breaking strength of 6.9 kg (60 N)
Standard package: 305 m (1000.66 ft)
Weight per 1000 ft (304.8 m): 16.8 kg (37.04 lbs)

Electrical characteristics

Frequency, MHz

Attenuation, dB

NEXT, dB

PSNEXT, dB

ELFEXT, dB

PSELFEXT, dB

1.0

20.0

2.4

74.3

72.3

67.8

64.8

4.0

23.0

3.8

65.3

63.3

55.8

52.8

8.0

24.5

5.3

60.8

58.8

49.7

46.7

10.0

25.0

6.0

59.3

57.3

47.8

44.8

16.0

25.0

7.6

56.3

54.3

43.7

40.7

20.0

25.0

8.5

54.8

52.8

41.8

38.8

25.0

24.3

9.5

53.3

51.3

39.8

36.8

31.25

23.6

10.7

51.9

49.9

37.9

34.9

62.5

21.5

15.4

47.4

45.4

31.9

28.9

100.0

20.1

19.8

44.3

41.3

27.8

24.8

200.0

18.0

29.0

39.8

37.8

21.8

18.8

250.0

17.3

32.8

38.3

36.3

19.8

16.8

Conductor resistance at 20°C (68°F)

9.38 Ohm/100 m (2.9 Ohm/100 ft)

DC Resistance Unbalance

Pair-to-Ground Capacitance Unbalance

330 pF/100 m (101 pF/100 ft)

Impedance 0.772-100 MHz

85-115 Ohm

Mutual Capacitance

5.6 nF/m (1.7 nF/ft)

Spark Test

2.5 kV
