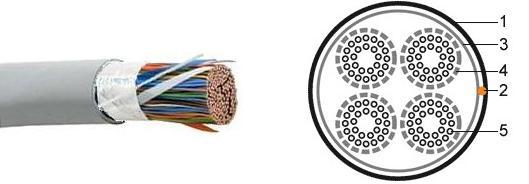

110503. Telephone Cable 100 Pairs

UTP Cat5, 100 pairs, PVC/PE Jacket; 20×5×2×0.50 BC + OD 0.92 PE + PET + Belt + OD 22 PVC 100Mhz, Complied with TIA/EIA568C.2, ISO11801

Detailed description

Description:

Unshielded Copper cable, 100 pairs, category 5, solid
Cable is used for indoor installation

Materials:

Conductive material: wire made of soft annealed electrolytic copper
Conductor insulation: HDPE
The cable jacket: PVC

Technical characteristics:

Conductor diameter: 0.51 mm (0.02") (24 AWG)
Insulated conductor diameter: 0.92 mm (0.035")
Outer cable diameter: 22 – 23 mm (0.49" – 0.9")
Jacket thickness: 0.8 mm (0.031")
Minimum bend radius: 6 outer cable diameters
Conductor elongation: 14% minimum
Rip cord has a breaking strength of 10 kg (98 N)
Pulling strength: 500 N Breaking strength: 600 N Installation temperature: -5°C – +40°C (+23°F – +104°F)
Operating temperature: -20°C – +60°C (-4°F – +140°F)
Weight per 1000 ft: 48.8 – 167.6 kg (107.5 – 369.6 lbs)
Standard package: 500 – 1000 m (1640 – 3280 ft)

Electrical characteristics

Frequency, MHz

Attenuation, dB/100m

PSNEXT, dB

Low value PS-ACR, dB/100 m

0.772

1.8

64.0

62.2

1.0

2.0

62.0

60.0

4.0

4.1

53.0

48.9

8.0

5.8

48.0

42.2

10.0

6.5

47.0

40.5

16.0

8.2

44.0

35.8

20.0

9.3

42.0

32.8

25.0

10.4

41.0

30.6

31.25

11.7

39.0

28.3

62.5

17.0

35.0

18.0

100.0

22.0

32.0

10.0

Conductor resistance at 20°C (68°F)

9.38 Ohm/100 m (2.9 Ohm/100 ft)

Resistance Unbalance

Capacitive unbalance at the frequency of 1 kHz

330 pF/100 m (101 pF/100 ft)

Resistance at the frequency of 1-100 MHz

100 ± 15 Ohm

Capacity at the frequency of 1 kHz

50 ± 4 pF/m

Propagation velocity

68%
