110403.S/FTP Cat8

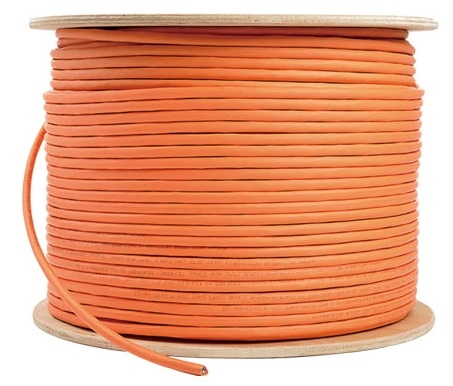

Cat8 Indoor SFTP
Detailed description

Description:

Shielded Copper cable, 4 pairs, category 8, solid
4 separately foil-shielded pairs
General shield: wire braid
Cable is used for indoor installation



Materials:

Conductive material: wire made of soft annealed electrolytic copper
Conductor insulation: HDPE, film-porous-film structure
The cable jacket: LSZH (low smoke zero halogen)
Shield: every pair is separately shielded with polyester aluminum foil (foil is on the outside), which covers 100% of twisted pair
General shield: tin Copper braid–70% minimum



Technical characteristics:

Conductor diameter: 0.575 mm (0.025") (23 AWG)
Outer cable diameter: 8.7 mm (0.34")
Operating temperature: -40°C to +70°C (-40°F to +158°F)
Weight per 1000 ft (304.8 m): 24.4 kg (53.8 lbs)
Standard package: 500 m (1640 ft)



Electrical characteristics



FREQ

(MHz)

IL

(dB/100m)

RL

(dB)

NEXT

(dB)

ACRF

(dB)

TCL

(dB)

Prop. Delay

(ns/100m)

PSANEXT

(dB)

PSAACRF

(dB)

1

2.1

20.0

75.0

75.0

50.0

570

80

80.0

4

3.7

23.0

75.0

75.0

41.0

552

80

80.0

10

5.8

25.0

75.0

75.0

35.0

545

80

80.0

16

7.3

25.0

75.0

75.0

31.9

543

80

78.1

20

8.2

25.0

75.0

74.3

30.5

542

80

76.2

30

10.1

25.0

75.0

70.8

27.8

541

80

72.7

62

14.6

23.6

75.0

64.4

23.1

539

80

66.3

100

18.5

22.2

75.0

60.3

20.0

538

80

62.2

200

26.5

20.1

70.9

54.3

15.5

537

80

56.2

300

32.7

18.9

68.2

50.8

12.8

536

80.0

52.7

400

38.0

18.0

66.4

48.3

11.0

536

80.0

50.2

600

47.1

16.8

63.7

44.7

8.3

535

78.5

46.6

1000

61.9

15.2

60.4

40.3

7.0

535

75.8

42.2

1200

68.4

14.7

59.2

38.7

7.0

535

72.5

40.6

1500

77.2

14.0

57.8

36.8

7.0

535

71.3

38.7

1600

80.0

13.8

57.3

36.2

7.0

535

69.4

38.1
