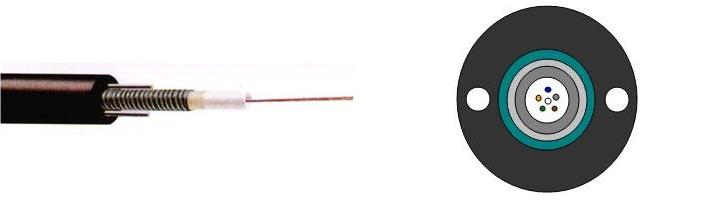

120101. GYXTW, central loose tube armored outdoor

Single jelly compound filled loose tube containing up to 24 fibers Duble-sided PE corrugated steel tape armored, Parallel double steel wire as strength member.

Detailed description

Description:

Single jelly compound filled loose tube containing up to 24 fibers
Waterproof tape between the steel tape and loose tube with jelly compound
Duble-sided PE corrugated steel tape armored, Parallel double steel wire as strength member
Compact structure,light weight,steel tape armored excellent crush-resitant performance
Excellent water-proof layer, good moisture resistance

Application:

Suitable for ducts and aerial
Long distance communication system
Local area network system
Subsriber network system

Mechanical & Environmental characteristics:

ITEM	CHARACTERISTICS
Operation temperature	-20℃~+60℃
Storage temperature	-40℃~+60℃
Sheath Material	P: PE; L: LSZH; or other

Part Number	Fiber Count	Outside Diameter (mm)	L.T Diameter (mm)	Cable Weight (kg/km)	Tensile Load		Crush Load		Bend Radius
Part Number	Fiber Count	Outside Diameter (mm)	L.T Diameter (mm)	Cable Weight (kg/km)	S (N)	L (N)	S (N)	L (N)	S (mm)	L (mm)
GYXTW02XXP-BK	2	8.5	2.3	90	1500	600	1000	300	20D	10D
GYXTW04XXP-BK	4	8.5	2.3	90	1500	600	1000	300	20D	10D
GYXTW06XXP-BK	6	8.5	2.3	90	1500	600	1000	300	20D	10D
GYXTW08XXP-BK	8	8.5	2.3	10	1500	600	1000	300	20D	10D
GYXTW12XXP-BK	12	9.0	2.5	10	1500	600	1000	300	20D	10D

Note: GYXTW denotes outdoor cable type;XX denotes fiber P/N code(09: SM; 62: 62.5/125um; 50: 50/125um;OM3) ; P denotes PE sheath ( L: LSZH) ; BK denotes black outer sheath.

Optical Characteristics:

Glass Type	62.5/125um	62.5/125um	50/125um	50/125um	50/125um	SM(G652.D)
Glass Type	Grade B	Grade A	Grade B	Grade A	OM3	SM(G652.D)
P/N Code(X)	62B	62A	50B	50A	OM3	09
Operating Wavelength	850/1300nm	850/1300nm	850/1300nm	850/1300nm	850/1300nm	1310/1550nm
Bandwidth (MHz.km)	160/500	200/600	200/500	400/800	1500/500	_
Attenuation (dB/km)	3.50/1.50	3.00/1.00	3..50/1.50	3.00/1.00	2.70/0.80	0.45/0.30
Link Length For 1000M	200/500	275/550	500/550	550/550	1000^4/600	_
Link Length For 10G	——	——	——	——	300/	_

Fiber Colour Code:

BL- Blue	BR- Brown	RE- Red	PU- Purple
OR- Orange	GY- Grey	BK- Black	PI- Pink
GR- Green	WH- White	YE- Yellow	AQ- Aqua

Note:

1000

1. The colour arrangement of optical fiber is specified in the fiber colour code
2. S: short term; L: long term; L.T: loose tube
3. Crush load: N/100mm; D: cable diameter
4. GY: outdoor cable; X: central tube; T: jelly compound; W: streel wire+PE outer sheath
