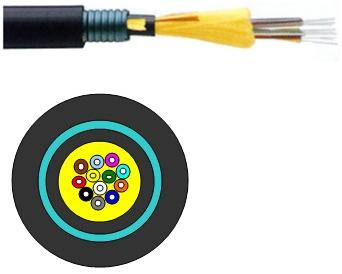

120104. Distribution Tight Buffer Armored

Tight buffered fiber without jelly compound, Aramid yarn strength members Corrugated steel tape (CST) protects fiber optic cable from rodents

Detailed description

Description:

Tight buffered fiber without jelly compound
Aramid yarn strength members Corrugated steel tape (CST) protects fiber optic cable from rodents and provides additional stiffness for aerial lashing.
PVC,LSZH,Plenum outer sheath available Round construction for minmum wind drag and ice buildup increases span length capability
Optical testing follows ITU, IEC and EIA/TIA-FOTP Quality approved by UL

Application:

Suitable for aerial,pipeline,bracket laying
Suitable for indoor and outdoor cable
Aramid strength members reduce weight for longer span lengths

Mechanical & Environmental characteristics:

ITEM	CHARACTERISTICS
Operation temperature	-20℃~+60℃
Storage temperature	-40℃~+85℃
Riser UL/cUL Rated	Type OFNR/OFN FT4
Plenum UL/cUL Rated	Type OFNP/OFN FT6
Jacket Material	PVC or LSZH or Plenum

Part Number	Fiber Count	Outside Diameter (mm)	T.B Diameter (mm)	Cable Weight (kg/km)	Tensile Load		Crush Load		Bend Radius
Part Number	Fiber Count	Outside Diameter (mm)	T.B Diameter (mm)	Cable Weight (kg/km)	S (N)	L (N)	S (N)	L (N)	S (mm)	L (mm)
H02DAXXR-CL	2	8.5	0.9	70	1500	200	1500	600	20D	10D
H04DAXXR-CL	4	10.0	0.9	76	1500	200	1500	600	20D	10D
H06DAXXR-CL	6	10.0	0.9	76	600	200	1500	600	20D	10D
H08DAXXR-CL	8	10.5	0.9	85	600	200	1500	600	20D	10D
H012DAXXR-CL	12	11.0	0.9	90	600	200	1500	600	20D	10D
H016DAXXR-CL	16	12.0	0.9	95	1500	600	2000	1000	20D	10D
H018DAXXR-CL	18	12.5	0.9	100	1500	600	2000	1000	20D	10D
H024DAXXR-CL	24	13.0	0.9	110	1500	600	2000	1000	20D	10D

Note: H denotes Haowave logo; XX denotes fiber P/N code(09: SM; 62: 62.5/125um; 50: 50/125um;OM3) ; 02 denotes fiber count ; R denotes Riser ( L: LSZH; P: Plenum) ; DA denotes distribution armored cable.

Optical Characteristics:

Glass Type	62.5/125um	62.5/125um	50/125um	50/125um	50/125um	SM(G652.D)
Glass Type	Grade B	Grade A	Grade B	Grade A	OM3	SM(G652.D)
P/N Code(X)	62B	62A	50B	50A	OM3	09
Operating Wavelength	850/1300nm	850/1300nm	850/1300nm	850/1300nm	850/1300nm	1310/1550nm
Bandwidth (MHz.km)	160/500	200/600	200/500	400/800	1500/500	_
Attenuation (dB/km)	3.50/1.50	3.00/1.00	3..50/1.50	3.00/1.00	2.70/0.80	0.45/0.30
Link Length For 1000M	200/500	275/550	500/550	550/550	1000^4/600	_
Link Length For 10G	——	——	——	——	300/	_

Fiber Colour Code:

BL- Blue	BR- Brown	RE- Red	PU- Purple
OR- Orange	GY- Grey	BK- Black	PI- Pink
GR- Green	WH- White	YE- Yellow	AQ- Aqua

Note:
1. The colour identification of the buffer layer complies with the standard colour identification set in GB13993.3-2001 Standard
2. S: short term; L: long term; T.B: tight buffer
3. Crush load: N/100mm; D: cable diameter
