120110. GYXTY, central loose tube FRP strength member

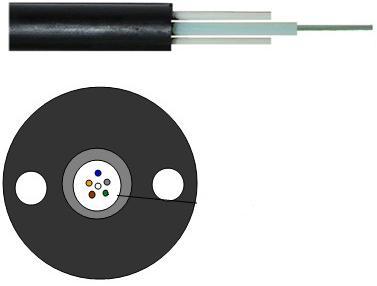

Single jelly compound filled loose tube containing up to 12 fibers; Parallel double FRP as strength member ensures good performance of tensile strength

Detailed description

Description:

Single jelly compound filled loose tube containing up to 12 fibers
Parallel double FRP as strength member ensures good performance of tensile strength
PE sheath protects cable from ultraviolet radiation Small diameter, light weight and installation friendliness
High strength loose tube with filling compound ensures critical protection of fiber

Application:

Suitable for ducts and aerial
Long distance communication system
Local area network system
Subsriber network system

Mechanical & Environmental characteristics:

ITEM	CHARACTERISTICS
Operation temperature	-20℃~+60℃
Storage temperature	-40℃~+60℃
Sheath Material	P: PE; L: LSZH; or other

Part Number	Fiber Count	Outside Diameter (mm)	L.T Diameter (mm)	Cable Weight (kg/km)	Tensile Load		Crush Load		Bend Radius
Part Number	Fiber Count	Outside Diameter (mm)	L.T Diameter (mm)	Cable Weight (kg/km)	S (N)	L (N)	S (N)	L (N)	S (mm)	L (mm)
GYFXTY02XXP-BK	2	7.2	2.3	65	1500	600	1000	300	20D	10D
GYFXTY04XXP-BK	4	7.2	2.3	65	1500	600	1000	300	20D	10D
GYFXTY06XXP-BK	6	7.2	2.3	65	1500	600	1000	300	20D	10D
GYFXTY08XXP-BK	8	7.2	2.3	65	1500	1000	1000	300	20D	10D
GYFXTY12XXP-BK	12	8.0	2.5	80	1500	1000	1000	300	20D	10D

Note: GYXTW denotes outdoor cable type;XX denotes fiber P/N code(09: SM; 62: 62.5/125um; 50: 50/125um;OM3) ; P denotes PE sheath ( L: LSZH) ; BK denotes black outer sheath.

Optical Characteristics:

Glass Type	62.5/125um	62.5/125um	50/125um	50/125um	50/125um	SM(G652.D)
Glass Type	Grade B	Grade A	Grade B	Grade A	OM3	SM(G652.D)
P/N Code(X)	62B	62A	50B	50A	OM3	09
Operating Wavelength	850/1300nm	850/1300nm	850/1300nm	850/1300nm	850/1300nm	1310/1550nm
Bandwidth (MHz.km)	160/500	200/600	200/500	400/800	1500/500	_
Attenuation (dB/km)	3.50/1.50	3.00/1.00	3..50/1.50	3.00/1.00	2.70/0.80	0.45/0.30
Link Length For 1000M	200/500	275/550	500/550	550/550	1000^4/600	_
Link Length For 10G	——	——	——	——	300/	_

Fiber Colour Code:

BL- Blue	BR- Brown	RE- Red	PU- Purple
OR- Orange	GY- Grey	BK- Black	PI- Pink
GR- Green	WH- White	YE- Yellow	AQ- Aqua

Note:

1000

1. The colour arrangement of optical fiber is specified in the fiber colour code
2. S: short term; L: long term; L.T: loose tube
3. Crush load: N/100mm; D: cable diameter
4. GY: outdoor cable; F: FRP central strength member; X: central tube; T: jelly compound; Y: FRP+PE outer sheath
