120202. FTTx Self-support Drop Cable

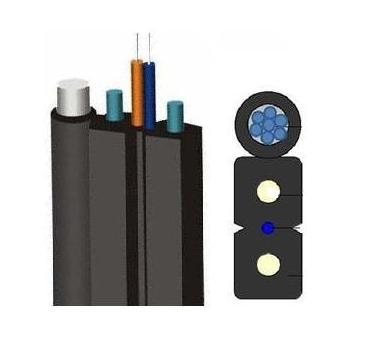

The FTTH drop cable is light, soft and easy to bend. It is suitable for aerial installation. And it also provides a smaller bending radius while using G.657 series of fiber.

Detailed description

Cable Type:
GJYXFCH-xM (1-4 Fiber)

Note:
Cable Type: GJXFH - xM (1-4 Fiber), GJXDH - xM (1-4 Fiber)
GJX: Bow-type drop cable; F: Non-metal strength member; D: Metal strength member; H: LSOH sheath;
x: number of fibers (1, 2, 4 ): M: fiber type ( B1.1: G.652B; B1.3: G.652D; B6a: G.657A; B6b: G.657B )

Fiber Attenuation

Items

Description

G.652D,G.657A1,G.657A2

Attenuation@1310

Attenuation@1550

0.4dB/km

0.3dB/km

Cable Dimension and Construction

Items		Description

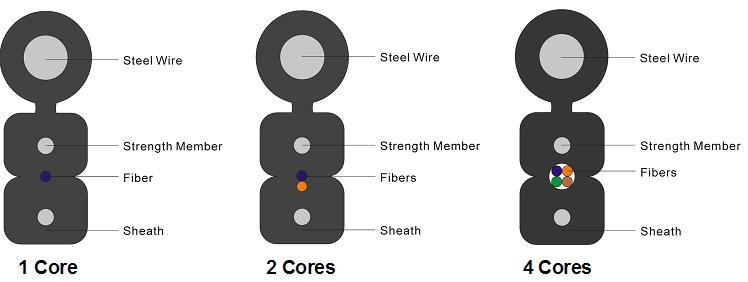

Optical Fiber	Fiber Count	1/2/4 fiber
Strength Member	Material Diameter	KFRP 0.60±0.05mm
Steel Wire	Diameter	1.2±0.05mm
Sheath	Material Thickness	LSZH Minimum0.35mm
Cable Dimension	Length×Height	2.0×5.3±0.2mm
Cable Weight	Net weight	Approx.16 kg/km
Fiber Color Code	1-4 Fiber	1-Blue, 2-Orange, 3-Green, 4-Brown

Mechanical and Environmental Characteristics

Items		Description
Tensile Strength	Installation Working	600N 300N
Crush Resistance	Installation Working	1000N 500N
Bending Radius	G652D Installation Working G657A1 Installation Working G657A2 Installation Working	60mm 30mm 40mm 20mm 40mm 20mm
Temperature Range	LSZH sheath -30℃- + 60℃	Change of attenuation≤0.2dB/km
