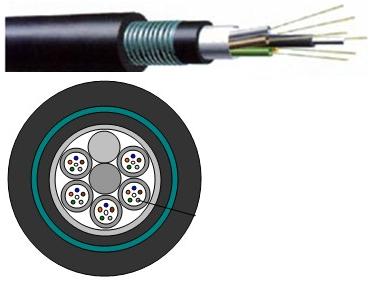

120117. GYFTA53, double layer armored 2PE sheath

Optical fiber cable with metallic/non-metallic central strength member of steel wire/FRP, Filling compound and inner sheath With aluminum tape protected cable core
Detailed description
Description:

Loose tube style,Gel-filled,layer-stranded
Optical fiber cable with metallic/non-metallic central strength member of steel wire/FRP
Filling compound and inner sheath
Double-sided PE corrugated steel tape+ PE outer sheath
Two-layer sheath for excellent crush-resistant perfermance
Good mechanical&envrironmental performance and moisture-resistance

Application:

Suitable for direct buried,ducts and aerial
Long distance communication system
Local area network system
Subscriber network system

Mechanical & Environmental characteristics:

ITEM CHARACTERISTICS
Operation temperature -20℃~+60℃
Storage temperature -40℃~+60℃
Sheath Material P: PE; L: LSZH; or other

Part
Number
Fiber
Count
Outside
Diameter
(mm)
Stranded
Units
Cable
Weight
(kg/km)
Tensile Load
Crush Load
Bend Radius
S (N)
L (N)
S (N)
L (N)
S (mm)
L (mm)
GY(F)TA5304XXP-BK
4
14.2
5
198
3000
1000
3000
1000
20D
10D
GY(F)TA5306XXP-BK
6
14.2
5
198
3000
1000
3000
1000
20D
10D
GY(F)TA5308XXP-BK
8
14.2
5
198
3000
1000
3000
1000
20D
10D
GY(F)TA5312XXP-BK
12
14.2
5
198
3000
1000
3000
1000
20D
10D
GY(F)TA5324XXP-BK
24
14.2
5
198
3000
1000
3000
1000
20D
10D
GY(F)TA5336XXP-BK
36
14.2
5
205
3000
1000
3000
1000
20D
10D
GY(F)TA5348XXP-BK
48
15.5
6
240
3000
1000
3000
1000
20D
10D
GY(F)TA5372XXP-BK
72
15.5
6
240
3000
1000
3000
1000
20D
10D
GY(F)TA5396XXP-BK
96
16.5
8
275
3000
1000
3000
1000
20D
10D
GY(F)TA53144XXP-BK
144
19.6
12
350
3000
1000
3000
1000
20D
10D

Note: GY(F)TY53 denotes outdoor cable type;XX denotes fiber type (09: SM; 62: 62.5/125um; 50: 50/125um;OM3) ; P denotes PE sheath( L: LSZH) ; BK denotes black outer sheath.

Optical Characteristics:

Glass Type
62.5/125um
62.5/125um
50/125um
50/125um
50/125um
SM(G652.D)
Grade B
Grade A
Grade B
Grade A
OM3
P/N Code(X)
62B
62A
50B
50A
OM3
09
Operating
Wavelength
850/1300nm
850/1300nm
850/1300nm
850/1300nm
850/1300nm
1310/1550nm
Bandwidth
(MHz.km)
160/500
200/600
200/500
400/800
1500/500
_
Attenuation
(dB/km)
3.50/1.50
3.00/1.00
3..50/1.50
3.00/1.00
2.70/0.80
0.45/0.30
Link Length
For 1000M
200/500
275/550
500/550
550/550
1000^4/600
_
Link Length
For 10G
——
——
——
——
300/
_

Fiber Colour Code:

BL- Blue BR- Brown RE- Red PU- Purple
OR- Orange GY- Grey BK- Black PI- Pink
GR- Green WH- White YE- Yellow AQ- Aqua

Note:



1000



1. The colour arrangement of optical fiber is specified in the fiber colour code
2. S: short term; L: long term; L.T: loose tube
3. Crush load: N/100mm; D: cable diameter
4. GY: outdoor cable; F: FRP central strength member; T: jelly compound; A: aluminum tape+PE inner sheath 53: steel tape armored+PE outer sheath
