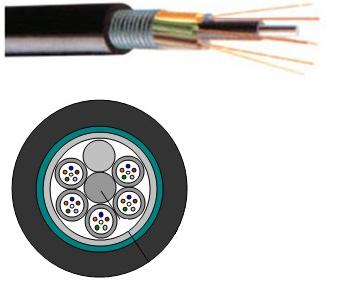

120112. YFTS, steel tape longitudinal layer- tranded

Loose tube style,Gel-filled,layer-stranded, Metallic/non-metallic central strength member of steel wire/FRP

Detailed description

Description:

Loose tube style,Gel-filled,layer-stranded.
O optical fiber cable with metallic/non-metallic central strength member of steel wire/FRP
Waterproof tape between the steel tape and cable core.
Double side plastic steel tapes and PE extruded as outer sheath
Good mechanical&envrironmental performance and moisture-resistance

Application:

Suitable for ducts and aerial
Long distance communication system
Local area network system
Subscriber network system

Mechanical & Environmental characteristics:

ITEM	CHARACTERISTICS
Operation temperature	-20℃~+60℃
Storage temperature	-40℃~+60℃
Sheath Material	P: PE; L: LSZH; or other

Part Number	Fiber Count	Outside Diameter (mm)	Stranded Units	Cable Weight (kg/km)	Tensile Load		Crush Load		Bend Radius
Part Number	Fiber Count	Outside Diameter (mm)	Stranded Units	Cable Weight (kg/km)	S (N)	L (N)	S (N)	L (N)	S (mm)	L (mm)
GY(F)TS04XXP-BK	4	10.2	5	120	1500	600	1000	300	20D	10D
GY(F)TS06XXP-BK	6	10.2	5	120	1500	600	1000	300	20D	10D
GY(F)TS08XXP-BK	8	10.2	5	120	1500	600	1000	300	20D	10D
GYXTW12XXP-BK	12	10.2	5	120	1500	600	1000	300	20D	10D
GYXTW24XXP-BK	24	10.2	5	122	1500	600	1000	300	20D	10D
GY(F)TS36XXP-BK	36	10.2	5	122	1500	600	1000	300	20D	10D
GY(F)TS48XXP-BK	48	11.2	6	135	1500	600	1000	300	20D	10D
GY(F)TS72XXP-BK	72	12.5	6	144	3000	1000	1000	300	20D	10D
GY(F)TS96XXP-BK	96	14.5	8	208	3000	1000	1000	300	20D	10D
GY(F)TS144XXP-BK	144	18.3	12	295	3000	1000	1000	300	20D	10D

Note: GY(F)TS denotes outdoor cable type;XX denotes fiber type (09: SM; 62: 62.5/125um; 50: 50/125um;OM3) ; P denotes PE sheath( L: LSZH) ; BK denotes black outer sheath.

Optical Characteristics:

Glass Type	62.5/125um	62.5/125um	50/125um	50/125um	50/125um	SM(G652.D)
Glass Type	Grade B	Grade A	Grade B	Grade A	OM3	SM(G652.D)
P/N Code(X)	62B	62A	50B	50A	OM3	09
Operating Wavelength	850/1300nm	850/1300nm	850/1300nm	850/1300nm	850/1300nm	1310/1550nm
Bandwidth (MHz.km)	160/500	200/600	200/500	400/800	1500/500	_
Attenuation (dB/km)	3.50/1.50	3.00/1.00	3..50/1.50	3.00/1.00	2.70/0.80	0.45/0.30
Link Length For 1000M	200/500	275/550	500/550	550/550	1000^4/600	_
Link Length For 10G	——	——	——	——	300/	_

Fiber Colour Code:

BL- Blue	BR- Brown	RE- Red	PU- Purple
OR- Orange	GY- Grey	BK- Black	PI- Pink
GR- Green	WH- White	YE- Yellow	AQ- Aqua

Note:

1000

1. The colour arrangement of optical fiber is specified in the fiber colour code
2. S: short term; L: long term; L.T: loose tube
3. Crush load: N/100mm; D: cable diameter
4. GY: outdoor cable; F: FRP central strength member; T: jelly compound; S: streel tape + PE outer sheath
