120113. GYFTC8S, Figure8 loose tube non-metallic strength member aerial

Jelly compound,optical fiber cable with non-metallic central strength member of FRP Filling compound and water-proof tape Amoured with corrugated steel tape

Detailed description

Description:

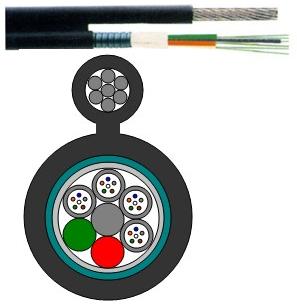

Loose tube style ,figure-8 optical fiber cable
Jelly compound,optical fiber cable with non-metallic central strength member of FRP
Filling compound and water-proof tape Amoured with corrugated steel tape
Incorporation steel messenger wire suitable for overhead installation as pole to pole or pole to premises
H high strength, tracking-resistant sheath

Application:

Usable for aerial installation
Long-haul communication systems
Junction communication systems
Subscriber network systems
Local area network systems

Mechanical & Environmental characteristics:

ITEM	CHARACTERISTICS
Operation temperature	-20℃~+60℃
Storage temperature	-40℃~+60℃
Sheath Material	P: PE; L: LSZH; or other

Part Number	Fiber Count	Outside Diameter (mm)	Stranded Units	Cable Weight (kg/km)	Tensile Load		Crush Load		Bend Radius
Part Number	Fiber Count	Outside Diameter (mm)	Stranded Units	Cable Weight (kg/km)	S (N)	L (N)	S (N)	L (N)	S (mm)	L (mm)
GYFTC8S0409P-BK	4	10.2/24.0	5	250	9000	4000	3000	1000	20D	10D
GYFTC8S0609P-BK	6	10.2/24.0	5	250	9000	4000	3000	1000	20D	10D
GYFTC8S0809P-BK	8	10.2/24.0	5	250	9000	4000	3000	1000	20D	10D
GYFTC8S1209P-BK	12	10.2/24.0	5	250	9000	4000	3000	1000	20D	10D
GYFTC8S2409P-BK	24	10.2/24.0	5	250	9000	4000	3000	1000	20D	10D
GYFTC8S3609P-BK	36	10.2/24.0	5	250	9000	4000	3000	1000	20D	10D
GYFTC8S4809P-BK	48	11.5/25.5	6	270	9000	4000	3000	1000	20D	10D
GYFTC8S7209P-BK	72	12.8/27.5	6	300	9000	3000	3000	1000	20D	10D
GYFTC8S9609P-BK	96	14.6/31.5	8	390	10000	5000	3000	1000	20D	10D
GYFTC8S14409P-BK	144	18.8/35.0	12	440	12000	6000	3000	1000	20D	10D

Note: GYFTC8S(A) denotes Figure 8 loose tube non-metallic type aerial optical cable ;09 denotes fiber type (09: SM) P denotes PE sheath; BK denotes black outer sheath.

Optical Characteristics:

Glass Type	62.5/125um	62.5/125um	50/125um	50/125um	50/125um	SM(G652.D)
Glass Type	Grade B	Grade A	Grade B	Grade A	OM3	SM(G652.D)
P/N Code(X)	62B	62A	50B	50A	OM3	09
Operating Wavelength	850/1300nm	850/1300nm	850/1300nm	850/1300nm	850/1300nm	1310/1550nm
Bandwidth (MHz.km)	160/500	200/600	200/500	400/800	1500/500	_
Attenuation (dB/km)	3.50/1.50	3.00/1.00	3..50/1.50	3.00/1.00	2.70/0.80	0.45/0.30
Link Length For 1000M	200/500	275/550	500/550	550/550	1000^4/600	_
Link Length For 10G	——	——	——	——	300/	_

Fiber Colour Code:

BL- Blue	BR- Brown	RE- Red	PU- Purple
OR- Orange	GY- Grey	BK- Black	PI- Pink
GR- Green	WH- White	YE- Yellow	AQ- Aqua

Note:

1000

1. The colour arrangement of optical fiber is specified in the fiber colour code
2. S: short term; L: long term; L.T: loose tube
3. Crush load: N/100mm; D: cable diameter
4. GY: outdoor cable;T: jelly compound; C8: Figure 8 cable S: steel tape armored+PE outer sheath(A: aluminum +PE sheath)
