120306. Fiber Optic Cable Cross Connection Cabinet (CCC)
  • 120306. Fiber Optic Cable Cross Connection Cabinet (CCC)

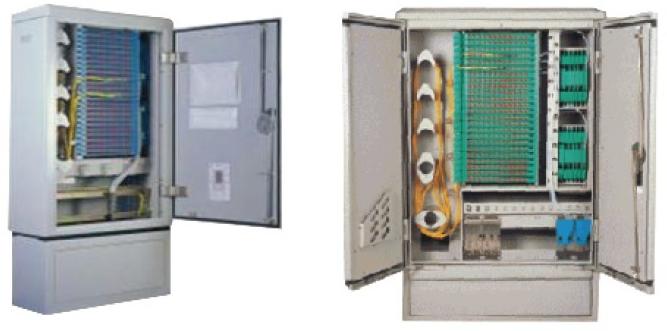

120306. Fiber Optic Cable Cross Connection Cabinet (CCC)

CCC is a connection device in the fiber optic access network for feeder cable and distribution cable. Fiber optic cables are spliced directly or terminated and managed by patch cords for distribution. With the development of FTTx, outdoor cable cross connection cabinet will be widely deployed and move closer to end user.
Detailed description

Features

* SMC or stainless steel plate
* High-performance sealing strip, IP65 grade
* Standard routing management with 40mm bending radius
* Safe fiber optic storage and protection function
* Clear marked for each fiber splice or distribution
* Suitable for fiber optic ribbon cable as well
* Optional external padlock, protecting the keyhole of built-in lock
* Reserved modular space for PLC splitter
* Grounding device of the cabinet locates at the fixing screw of the base for credible performance
* Moisture of base comes out from the down-warded vent

Ordering Guide

NO. Type Dimension (mm) H*W*D Max Capacity (Fiber count)
1 GXF576-YS1a 1035x550x310 96 ports, 2 pieces of 2:32 PLC splitter optional, SMC cabinet
2 GXF576-YS2a 1035x550x310 144 ports, 2 pieces of 2:32 PLC splitter optional, SMC cabinet
3 GXF576-YS3a 1450x750x325 288 ports, 4 pieces of 2:32 PLC splitter optional, SMC cabinet
4 GXF576-YS4a 1450x750x600 576 ports, 8 pieces of 2:32 PLC splitter optional, SMC cabinet
5 GXF576-YJ1a 1035x550x310 96 ports, 2 pieces of 2:23 PLC splitter optional, stainless steel cabinet
6 GXF576-YJ2a 1035x550x310 144 ports, 2 pieces of 2:23 PLC splitter optional, stainless steel cabinet
7 GXF576-YJ3a 1450x750x325 288 ports, 4 pieces of 2:23 PLC splitter optional, stainless steel cabinet
8 GXF576-YJ4a 1450x750x600 576 ports, 8 pieces of 2:23 PLC splitter optional, stainless steel cabinet
