111012. CAT5E RJ45 8p8c UTP Unshielded Tooless Keystone Jack
  • 111012. CAT5E RJ45 8p8c UTP Unshielded Tooless Keystone Jack

111012. CAT5E RJ45 8p8c UTP Unshielded Tooless Keystone Jack

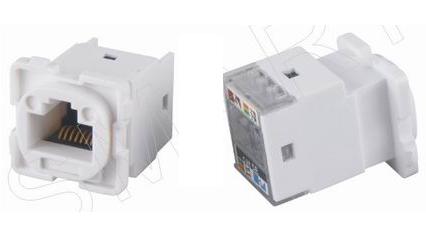

CAT5E RJ45 8p8c UTP Unshielded Tooless Keystone Jack
Detailed description

CAT.5E RJ45 8p8c UTP Unshielded Tooless Keystone Jack


Features:

Housing: High-impact Flame Retardant Polycarbonate,UL94V-0

Spring Wire: Phosphor Bronze With Gold-plated 3u-50u
IDC Contact: Phosphor Bronze
Insertion life:≥1000 mating cycles
Operating Temperature Range : -60℃ to 80℃
IDC Accept: 22-26 AWG
Wire Scheme: T568A/B
Insulation Resistance: 500Ω
Current Rating: 1.5Amps
DC Resistance: 0.1 ohm MAX
Voltage: 150 VAC MAX
Plug Retention Force: 89N


Package:
400PCS in a carton
Carton Measurement: L53CM*W32CM*H23
