140206. Dual RG 6 Standard +Messenger

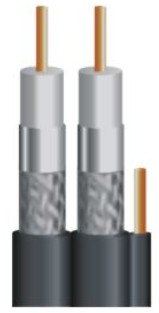

Dual RG 6 Standard +Messenger
Detailed description
Cable Structure
Inner conductor ø mm 2x1.02 Solid BC or CCS
Insulation ø mm 4.57 Foam PE
Shield 2 Shield
Al foil
min 59% Al Braid
Outer jacket 6.15 PVC
-40°C/+75°C
 RoHS
Steel Messenger ø mm 1.16mm Steel
Electrical characteristics
Impedance (Ohm) 75±3
Min. Velocity Propagation 82%
Norminal Atten at 20°(dB/100m)
5       MHz 1.90
55     MHz 5.25
211   MHz 10.00
250   MHz 10.82
300   MHz 11.84
400   MHz 13.61
500   MHz 15.29
750   MHz 18.54
1000 MHz 21.49
1450 MHz 26.01
1750 MHz 28.50
2250 MHz 32.31
3000 MHz 38.54
Min.Structual Return Loss
5-1000        MHz >21dB
1000-2000 MHz >18dB
2000-3000 MHz >15dB
