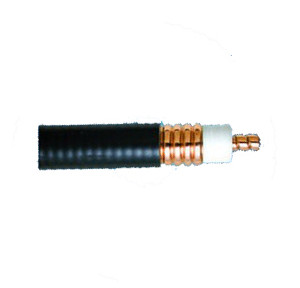

140513. HHTAY-50-31(1-1/4" S) SuperFlexible

HHTAY-50-31(1-1/4" S) SuperFlexible

Detailed description

Cable Structure
Inner conductor ø mm	13.5 Helix wrinkles CU tube
Insulation ø mm	32.8
Outer conductor ø mm (Helix wrinkles CU tube)	35.8
Outer jacket mm	38.6
Mechanical characteristics
Maximum tension(N)	2842
Repeated bending radius(mm)	300
Storage temperature(°C)	–55 ～ +80°C
Installation temperature(°C)	–40 ～ +80°C
Electrical characteristics
Characterristic Impedance (Ohm)
100-2500 MHz	50.0
Voltage standing-wave ratio
800-1000 MHz	1.15
1700-2200 MHz	1.20
Peak power(KW)	178.0
Cut-off frequency(Ghz)	3.4
Attenuation constant(dB/100m) Typical value
900 MHz	2.96
1800 MHz	4.54
2400 MHz	5.35
