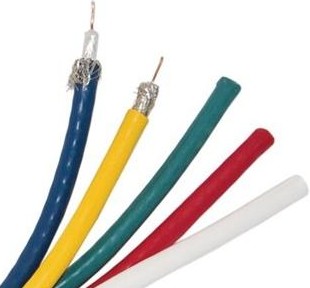

140105. One Core Quad Shield Mini RG59

One Core Quad Shield Mini RG59

Detailed description

Inner Conductor mm	1×0.57mm BC
Insulation mm	1×2.54+/- 0.05 FPE
Shield	4 shield APA + 95%TC Braid APA + 90%TC Braid
Filling	————
Out Jacket	4.7mm+/-0.1 PVC
Impedance:	75 ± 3 ohms
Capacitance	16.3 pF/ft
Velocity of Propagation	83%
Nom. Delay:	1.22 ns/ft
Conductor Resistance	20.1 ohms/1000 ft
Shield DC Resistance	3.5 ohms/1000 ft
Return Loss	20 dB min., 5-850 MHz 18 dB min., 851-3000 MHz
NEC/(UL)	CM
Maximum Pulling Tension	36 lbs
Nominal Attenuation dB/100ft/m:
5 Mhz	0.96/ 3.15
55 Mhz	2.73/ 8.96
250 Mhz	5.48/ 17.98
300 Mhz	6.01/ 19.72
400 Mhz	6.98/ 22.90
450 Mhz	7.37/ 24.18
500 Mhz	7.86/ 25.79
600 Mhz	8.66/ 28.41
750 Mhz	9.75/ 31.99
1000 Mhz	11.34/ 38.13
1500 Mhz	13.78/ 45.21
2000 Mhz	15.95/ 52.33
2250 Mhz	16.96/ 55.64
3000 Mhz	19.61/ 64.34
