150103. HDSR 670
  • 150103. HDSR 670

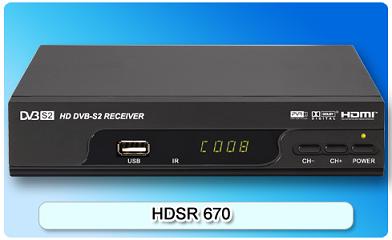

150103. HDSR 670

Fully compliant with DVB-S2 and DVB-S(MPEG2/MPEG4/H.264) ; USB2.0 for software update/PVR/media play back ; Full HD output in 720,1080i,1080p; HDCP protection; Multi-lingual OSD and user-friendly UI; Parental Control,Teletext,EPG supported.
Detailed description

Features:

  • Fully compliant with DVB-S2 and DVB-S(MPEG2/MPEG4/H.264)
  • USB2.0 for software update/PVR/media play back
  • Full HD output in 720,1080i,1080p
  • HDCP protection
  • Multi-lingual OSD and user-friendly UI
  • Parental Control,Teletext,EPG supported
  • Favorite Group supported
  • DiSEqC1.0, 1.1, 1.2, USALS Compatible
  • Time shift supported with external hard drive disc
  • RCA interface
  • Less than 0.5 Watt in standby

Specifications

DVB-S2 LNB Input/Demodulation

Connector Type F-Female *1 for LNB input,F-Female* 1 for LOOP OUT
Input Frequency 950MHz-----2150MHz
Signal Input level -65dBm∽-25dBm
Input Impedance 75Ohm
Demodulation Scheme QPSK/8PSK: 1~55Msps
Signal compatibility Support conversion for different video formats and frame rates

Power Supply

Power Consumption Max10W
AC input 100-240VAC@50/60Hz±5%

Memory

Flash 32Mbit
DDRII Memory 512Mbit

Physical Characteristics

Physical Size 170mm * 96mm *40mm

Front Panel

Key POWER, CH+, CH-
Indicator LED Indicator for Power On/Off
Remote Control Input Infra-red receiver
Indicator 4 Digits 7-segment LED display
Connector 1*USB2.0 interface

Rear Panel

Connector 2*F connector for LNB in and LOOP OUT
1*HDMI 1.3 interface, up to 1080p
1*AV RCA3(CVBS,L/R)
1*COAXIAL

Remote Specifications

Battery (AAA 1.5V)*2
Operation Distance 8m Min.(front distance from receiver)
Operation Angle Range ±45°(horizontal),±20°(vertical)
