151406. GC-1012 5-1000MHz 2-way Splitter
  • 151406. GC-1012 5-1000MHz 2-way Splitter

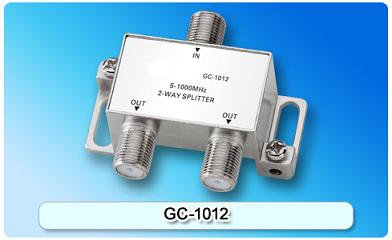

151406. GC-1012 5-1000MHz 2-way Splitter

Zinc die-cast housing, nickel-plated; Screening factor: 5-1000MHz≥100dB; Low insertion loss,high return loss and isolation; Micro-strip circuit design and perfect performance index; All ports F-(f)connector,75 Ohm; Arched housing design, can pass the cable through housing.
Detailed description

Features:

  • Zinc die-cast housing, nickel-plated
  • Screening factor: 5-1000MHz≥100dB
  • Low insertion loss,high return loss and isolation
  • Micro-strip circuit design and perfect performance index
  • All ports F-(f)connector,75 Ohm
  • Arched housing design, can pass the cable through housing

Specifications

Frequency Range (MHz)

Insertion Loss(dB)

Mutual Isolation(dB)

Return Loss(dB)

5-40

≤3.5

≥30

≥25

40-470

≤3.6

≥30

≥25

470-860

≤3.8

≥28

≥22

860-1000

≤4.0

≥25

≥20
