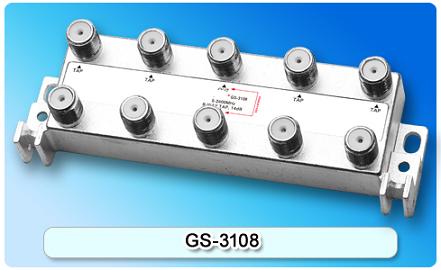

150856. GS-3108 5-2400MHz SAT 8-way Tap

Zinc die-cast housing, tin-plated; Screening factor: 5-2400MHz≥100dB; Capable of suspending installation; Micro-strip circuit design and perfect performance index; Power passing(IN-OUT)30V DC/AC, 1A(MAX.); All ports F-(f)connector,75 Ohm.

Detailed description

Features:

Zinc die-cast housing, tin-plated
Screening factor: 5-2400MHz≥100dB
Capable of suspending installation
Micro-strip circuit design and perfect performance index
Power passing(IN-OUT)30V DC/AC， 1A(MAX.)
All ports F-(f)connector,75 Ohm
Bright tin finish, solder or glue sealed optional

Specifications

Item	Frequency Range	20	24	27	30
Insertion Loss (dB)	5-40(MHz)	3.0	1.5	1.2	1.2
	40-1000(MHz)	3.0	2.5	1.5	1.5
	1000-1750(MHz)	3.5	3.0	2.0	1.5
	1750-2400(MHz)	4.5	4.0	3.0	2.5
Tap Loss Tolerance (dB)	5-40(MHz)	±1.0
	40-1000(MHz)	±1.0
	1000-1750(MHz)	±1.5
	1750-2400(MHz)	±2.5
Mutual Isolation (dB)	5-40(MHz)	20	20	18	18
	40-1000(MHz)	22	22	22	22
	1000-1750(MHz)	22	22	22	22
	1750-2400(MHz)	20	20	20	20
Reverse Isolation (dB)	5-40(MHz)	25	25	35	35
	40-1000(MHz)	25	25	30	30
	1000-1750(MHz)	22	22	25	25
	1750-2400(MHz)	22	22	25	25
Return Loss (dB)	5-40(MHz)	10	10	10	10
	40-1000(MHz)	10	10	10	10
	1000-1750(MHz)	10	10	10	10
	1750-2400(MHz)	10	10	10	10
