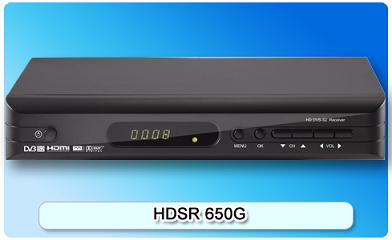

150108. HDSR 650G

Fully compliant with DVB-S2 and DVB-S(MPEG2/MPEG4/H.264); USB2.0 for software update/PVR/media play back; Full HD output in 720,1080i,1080p; HDCP protection; Multi-lingual OSD and user-friendly UI; Parental Control,Teletext,EPG supported.

Detailed description

Features:

Fully compliant with DVB-S2 and DVB-S(MPEG2/MPEG4/H.264)
USB2.0 for software update/PVR/media play back
Full HD output in 720,1080i,1080p
HDCP protection
Multi-lingual OSD and user-friendly UI
Parental Control,Teletext,EPG supported
Favorite Group supported
DiSEqC1.0, 1.1, 1.2, USALS Compatible
Time shift supported with external hard drive disc
Less than 0.5 Watt in standby
Support movie files with MPEG1/MPEG2/MPEG4/H264/VC-1/MOTION JPEG, so on.
Support music files with WMA/MP3/AAC(.wma/.mp3/.m4a)
Suport picture with JPEG, BMP, PNG

Specifications

DVB-S2 LNB Input/Demodulation
Connector Type	F-Female 1 for LNB Input，F-Female 1 for LOOP OUT
Input Frequency	950MHz-----2150MHz
Signal Input level	-65dBm ∽ -25dBm
Input Impedance	75Ohm
Demodulation Scheme	QPSK/8PSK: 1~55Msps
Signal compatibility	Support conversion for different video formats and frame rates
Power Supply
AC input	100-240VAC@50/60Hz
Power consumption	Max10W
Memory
Flash	32Mbit
DDRII Memory	512Mbit
Physical Characteristics
Physical Size	220mm * 135mm * 38mm
Front Panel
Key	POWER, CH+, CH-, VOL+, VOL-, MENU, OK
Indicator	LED Indicator for Power On/Off
Dispay	4 Digits 7-segment LED dispay
Remote Control input	Infra-red receiver
Rear Panel
Connector	2*F connector for LNB IN and LOOP OUT
	1*HDMI 1.3 interface, up to 1080p
	1*AV RCA3(CVBS,L/R)
	1*Optical
	1*USB2.0 interface
Remote Specifications
Battery	(AAA 1.5V)*2
Operation Distance	8m Min.（front distance from receiver）
Operation Angle Range	±45°(horizontal)，±20°(vertical)
