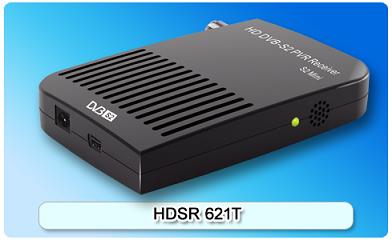

150111. HDSR 621T

Fully compliant with DVB-S2 and DVB-S(MPEG2/MPEG4/H.264); USB2.0 for software update/PVR/media play back; Full HD output in 720,1080i,1080p; HDCP protection; Multi-lingual OSD and user-friendly UI; Parental Control,Teletext,EPG supported; Favorite Group supported. DiSEqC1.0, 1.1, USALS Compatible Time shift supported with external hard drive disc Supporting movie files with MPEG1/MPEG2/MPEG4/H264, so on Support music files with WMA/MP3/AAC(.wma/.mp3/.m4a) Suport picture with JPEG, BMP, PNG

Detailed description

Features:

Fully compliant with DVB-S2 and DVB-S(MPEG2/MPEG4/H.264)
USB2.0 for software update/PVR/media play back
Full HD output in 720,1080i,1080p
HDCP protection
Multi-lingual OSD and user-friendly UI
Parental Control,Teletext,EPG supported
Favorite Group supported
DiSEqC1.0, 1.1, USALS Compatible
Time shift supported with external hard drive disc
Supporting movie files with MPEG1/MPEG2/MPEG4/H264, so on
Support music files with WMA/MP3/AAC(.wma/.mp3/.m4a)
Suport picture with JPEG, BMP, PNG

Specifications

DVB-S2 LNB I Input/Demodulation
Connector Type	F-Female for LNB Input
Input Frequency	950MHz-----2150MHz
Signal Input level	-65dBm ∽ -25dBm
Input Impedance	75Ohm
Demodulation Scheme	QPSK/8PSK: 1~55Msps
Signal compatibility	Support conversion for different video formats and frame rates
Power Supply
AC input	100-240VAC@50/60Hz
Power consumption	Max10W
Memory
Flash	32Mbit
DDRII Memory	512Mbit
Physical Characteristics
Physical Size	115mm * 75mm * 22mm
Front Panel

Indicator	LED Indicator for Power On/Off
Remote Control input	Infra-red receiver
Rear Panel
Connector	1*F connector for LNB IN
	1*HDMI 1.3 interface, up to 1080p
	1*AV RCA3(CVBS,L/R)
	1*USB2.0 interface
Remote Specifications
Battery	(AAA 1.5V)*2
Operation Distance	8m Min.（front distance from receiver）
Operation Angle Range	±45°(horizontal)，±20°(vertical)
