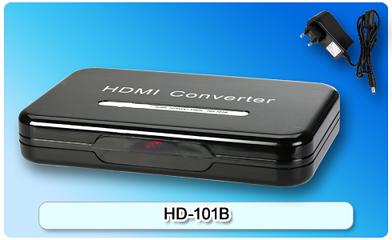

152805. HD-101B HDMI Converter

Convert HDMI digital signal to YPbPr analog video signal, VGA analog video signal and stereo audio signal; YPbPr and VGA output resolution changes with the input signal HDMI; YPbPr resolution output (max.):1080P@50/60Hz, VGA resolution output (max.):1920*1080@50/60Hz; Support 12-bit deep color 1080P.

Detailed description

Features:

Convert HDMI digital signal to YPbPr analog video signal, VGA analog video signal and stereo audio signal
YPbPr and VGA output resolution changes with the input signal HDMI
YPbPr resolution output (max.):1080P@50/60Hz, VGA resolution output (max.):1920*1080@50/60Hz
Support 12-bit deep color 1080P
Be compatible with HDMI 1.3 and HDCP 1.2
Plug and play, Easy to install and simple to use

Specifications

Item	Specification
Product	HDMI to VGA+YPbPr HD-101B
Input source	HDMI signal
Output signal	YPbPr video signal,VGA video signal and stereo audio signal
HDMI Input Standard(VGA)	640480@60/75/85Hz,800600@60/75/85Hz 1024768@60/75/85Hz,1280768@60/75/85Hz, 1280800@60Hz, 720480P@60Hz ,720576P@50Hz, 1280960@60/85Hz 12801024@60/75/85Hz, 1360768@60Hz ,1280720P@50/60Hz, 19201080i50/60Hz 1920*1080P@50/60Hz
VGA output resolution corresponding	640480@60/75/85Hz,800600@60/75/85Hz,1024768@60/75/85Hz,1280768@60/75/85Hz ,1280800@60Hz, 1280960@60/85Hz,12801024@60/75/85Hz, 1360768@60Hz 1280720@50/60Hz, 19201080@50/60Hz
HDMI Input Standard(YPbPr) and YPbPr Output Resolution Corresponding	480i@60Hz,480P@60Hz,576i@50Hz, 576P@50Hz,720P@50/60Hz,1080i@50/60Hz,1080P@50/60Hz
HDMI and HDCP Compliant	HDMI 1.3, HDCP Rev 1.2
Frequency Range	25-225MHz
Operation Temperature	0℃ to 70℃
Power Supply	5V
Housing Material	ABS
Dimension	1509927mm
