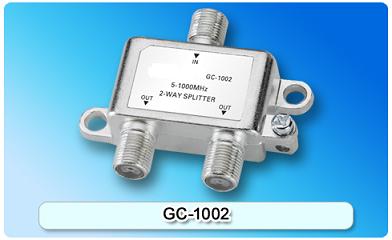

151401. GC-1002 5-1000MHz 2-way Splitter
  • 151401. GC-1002 5-1000MHz 2-way Splitter

151401. GC-1002 5-1000MHz 2-way Splitter

Zinc die-cast housing, tin-plated; Light weight and compact size; Easy installation with two edge hole sites Screening factor: 5-1000MHz≥100dB; Micro-strip circuit design and perfect performance index; All ports F-(f) connector, 75Ohm.
Detailed description

Features:

  • Zinc die-cast housing, tin-plated
  • Light weight and compact size
  • Easy installation with two edge hole sites
  • Screening factor: 5-1000MHz≥100dB
  • Micro-strip circuit design and perfect performance index
  • All ports F-(f) connector, 75Ohm

Specifications

Frequency Range (MHz)

Insertion Loss(dB)

Mutual Isolation(dB)

Return Loss(dB)

5-40

3.5

30

20

40-470

3.6

30

20

470-860

3.8

28

18

860-1000

4.0

25

17
