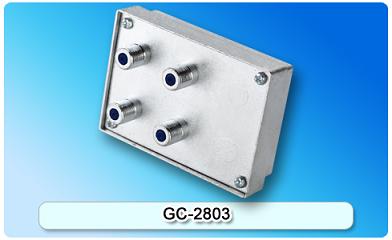

151606. GC-2803 45-1000MHz 3-way Splitter

Dedicated for outdoor CATV trunk system and designed with excellent waterproof craft; Zinc die-cast housing, tin-plated; screening factor：45-1000MHz≥100dB; Super-compact size, light weight and easy to attach; All ports F-(f)connector,75 Ohm.

Detailed description

Features:

Dedicated for outdoor CATV trunk system and designed with excellent waterproof craft
Zinc die-cast housing, tin-plated
screening factor：45-1000MHz≥100dB
Super-compact size, light weight and easy to attach
All ports F-(f)connector,75 Ohm
Available to supply 45-1000MHz
Power passing all ports: 6A AC/DC

Specifications

Frequency Range(MHz)	Insertion Loss(dB)	Mutual Isolation(dB)	Return Loss(dB)
45-470	≤6.0	≥25	≥20
470-860	≤6.5	≥25	≥18
860-1000	≤7.5	≥22	≥16
