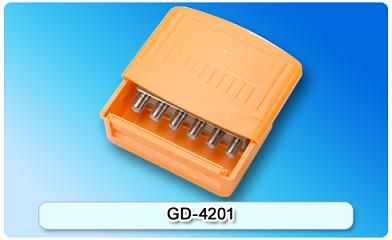

150557. GD-4201 DiSEqC 2.0 5 in 1 switch

Capable of connecting four SATV signals, one ANT signal or FM broadcast simultaneously. Excellent Zinc die-cast housing and exquisite plastic case shell attached, Can work normally outdoors under unsheltered circumstance; Excellent quality component, professional circuit design and low loss; Excellent quality chip, professional program design and compatible with more .

Detailed description

Features:

Capable of connecting four SATV signals, one ANT signal or FM broadcast simultaneously。
Excellent Zinc die-cast housing and exquisite plastic case shell attached, Can work normally outdoors under unsheltered circumstance．
Excellent quality component, professional circuit design and low loss
Excellent quality chip, professional program design and compatible with more types of satellite receiver
Utilize one coaxial cable to transmit control and SAT／ANT signal simultaneously

Specifications

Item	Specification	Item	Specification
Frequency Range	950-2400(MHz)	Normal Working Voltage	12-20(V)
Frequency Range ANT	5-860(MHz)	DC Power Consumption	10(mA)
Insertion Loss	5(dB)	DC Max Power Passing	500(mA)
Isolation	30(dB)	Impedance(all ports)	75(Ω)
Return Loss	8(dB)
