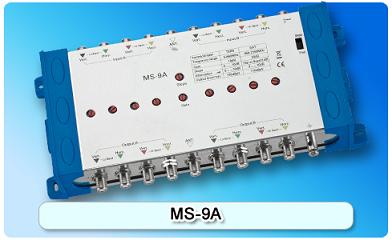

150649. MS-9A Cascadable Amplifier, 9 In Series
  • 150649. MS-9A Cascadable Amplifier, 9 In Series

150649. MS-9A Cascadable Amplifier, 9 In Series

Gain adjustable design; Can compensate the loss in your distribution system; External 20V, 2000mA DC power supply; Red LED for power in, yellow LED for power link.
Detailed description

Features:

  • Gain adjustable design
  • Can compensate the loss in your distribution system
  • External 20V, 2000mA DC power supply
  • Red LED for power in, yellow LED for power link

Specifications

Item

Specification Item Specification
Frequency Range ANT 5-860(MHz) Output Level ANT 105(dBuV)
Frequency Range SAT 950-2150(MHz) Output Level SAT 110(dBuV)
Gain SAT 20(dB) Noise Figure 6(dB)
Gain ANT 18(dB) DC Power Consumption 350(mA)
Slope Control SAT 0/ 6(dB) selectable Supply Voltage(VDC) 20V(±1)2000mA
Slope Control ANT 0-10(dB) Temperature Range -20℃-60℃
Return Loss 10(dB) Impedance(all ports) 75(Ω)
Gain Adjustable Range 0-10(dB)
Connectors:“F” type female
