150110. HDSR 631G
  • 150110. HDSR 631G

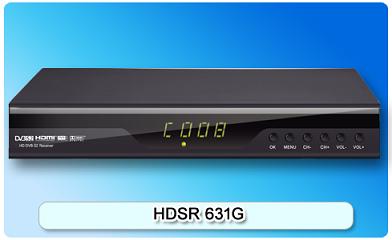

150110. HDSR 631G

Fully compliant with DVB-S2 and DVB-S(MPEG2/MPEG4/H.264); USB2.0 for software update/PVR/media play back; Full HD output in 720,1080i,1080p; HDCP protection; Multi-lingual OSD and user-friendly UI; Parental Control,Teletext,EPG supported.
Detailed description

Features:

  • Fully compliant with DVB-S2 and DVB-S(MPEG2/MPEG4/H.264)
  • USB2.0 for software update/PVR/media play back
  • Full HD output in 720,1080i,1080p
  • HDCP protection
  • Multi-lingual OSD and user-friendly UI
  • Parental Control,Teletext,EPG supported
  • Favorite Group supported
  • DiSEqC1.0, 1.1, 1.2, USALS Compatible
  • Time shift supported with external hard drive disc
  • Less than 0.5 Watt in standby
  • Support movie files with MPEG1/MPEG2/MPEG4/H264/VC-1/MOTION JPEG, so on.
  • Support music files with WMA/MP3/AAC(.wma/.mp3/.m4a)
  • Suport picture with JPEG, BMP, PNG

Specifications

DVB-S2 LNB Input/Demodulation

Connector Type F-Female *1 for LNB Input,F-Female* 1 for LOOP OUT
Input Frequency 950MHz-----2150MHz
Signal Input level -65dBm ∽ -25dBm
Input Impedance 75Ohm
Demodulation Scheme QPSK/8PSK: 1~55Msps
Signal compatibility Support conversion for different video formats and frame rates

Power Supply

AC input 100-240VAC@50/60Hz
Power consumption Max10W

Memory

Flash 32Mbit
DDRII Memory 512Mbit

Physical Characteristics

Physical Size 260mm * 180mm * 41mm

Front Panel

Key CH+, CH-, VOL+, VOL-, MENU, OK
Indicator LED Indicator for Power On/Off
Dispay 4 Digits 7-segment LED dispay
Remote Control input Infra-red receiver

Rear Panel

Connector 2*F connector for LNB IN and LOOP OUT
1*HDMI 1.3 interface, up to 1080p
1*AV RCA3(CVBS,L/R)
1*YPbPr
1*Optical
1*USB2.0 interface

Remote Specifications

Battery (AAA 1.5V)*2
Operation Distance 8m Min.(front distance from receiver)
Operation Angle Range ±45°(horizontal),±20°(vertical)
