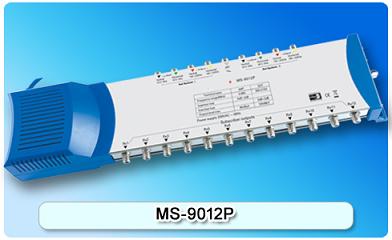

150652. MS-9012P 9 in 12 Multiswitch, 9 In Series

Excellent quality tinplate housing and exquisite plastic case shell attached, making installation convenient; Excellent quality component, professional amplification design and low loss; Internal 20V 1200mA power can directly connect 220-230V AC; Power source with short-circuit protection and over-current protection design ensures operation more secure.

Detailed description

Features:

Excellent quality tinplate housing and exquisite plastic case shell attached, making installation convenient
Excellent quality component, professional amplification design and low loss
Internal 20V 1200mA power can directly connect 220-230V AC
Power source with short-circuit protection and over-current protection design ensures operation more secure
13/18V、0/22KHz、DiSEqC 2.0 supplied by satellite receiver through coaxial cable to switch corresponding port
Capable of connecting eight SATV signals, one ANT signal or FM broadcast simultaneously
Eight SATV signals switched through 13/18V、0/22KHz、DiSEqC 2.0
Distributed into twelve subscribers to use simultaneously and no mutual interference
Applicable to multi-satellite and multi-receiver usage

Specifications

Item	Specification	Item	Specification
Frequency Range ANT	5-860(MHz)	Return Loss ANT Input	12(dB)
Frequency Range SAT	950-2150 (MHz)	Return Loss Outputs	8(dB)
Insertion Loss ANT	5(dB)	Output Level ANT	85(dBuV)
Insertion Loss SAT	3(dB)	Output Level SAT	100(dBuV)
Isolation In-In SAT	25(dB)	Normal Working Voltage	12-20(V)
Isolation In-In SAT/ANT	25(dB)	DC Power Consumption	250(mA)
Isolation Between Outputs	25(dB)	External Power Supply	220-230V 50Hz
Switching Isolation SAT Inputs	28(dB)	Temperature Range	-20℃-60℃
Return Loss SAT Inputs	10(dB)	Impedance(all ports)	75(Ω)

Switching Voltage、Signal : 13/18V 、0/22KHz、DiSEqC 2.0
Connectors:“F” type female
