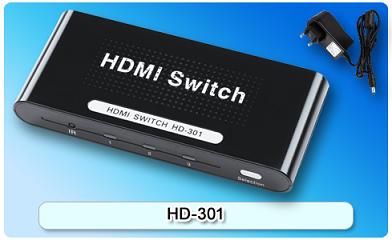

152603. HD-301 HDMI Switch

Supports HDMI 1.3 version; Compatible backward with DVI input signal; High performance, up to 2.5Gbps per channel Supports full HD video and audio transmission Supports 12-bit Deep Color per channel; Suitable for HDCP compliant equipments.

Detailed description

Features:

Supports HDMI 1.3 version
Compatible backward with DVI input signal
High performance, up to 2.5Gbps per channel
Supports full HD video and audio transmission
Supports 12-bit Deep Color per channel
Suitable for HDCP compliant equipments
Ensures the high definition signal transmission without any signal loss
Plug and Play. No software installation required
LED indicators for input selection
Encloses a Remote Controller for operational flexibility and easy control
Differential Interface compatible with Transition Minimized Differential Signaling (TMDS) Electrical Specification
Supports high video resolution up to 1920*1200 including 720p, 1080i and 1080p
Easy to install and supports to link single HD displayer for multiple sources, such as DVD Player and Satellite Receiver, Set Top Boxes and so on

Specifications

Item	Specification	Item	Specification
Switchable Input Ports	3 ports HDMI Switch	Single Link Range	1920X1200
HDMI Source Input Port	3	Performance per Channel	Up to 2.5Gbps
Output Port to Display	1	Vertical Frequency Range	60Hz
Input Port Connector	HDMI 19 pin A type	Power Consumption (max.)	5 Watts
Output Port Connector	HDMI 19 pin A type	Operation Temperature	0℃ to 70℃
HDCP Compliant	Yes	Power Adapter	5V 2 A
Source Selection	Panel Button or IR Remote	Housing Material	ABS
Source Port LED	3	Dimension	1958626mm
