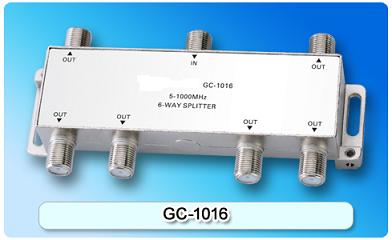

151409. GC-1016 5-1000MHz 6-way Splitter

Zinc die-cast housing, nickel-plated; Screening factor: 5-1000MHz≥100dB; Low insertion loss,high return loss and isolation; Micro-strip circuit design and perfect performance index; All ports F-(f)connector,75 Ohm; Arched housing design, can pass the cable through housing.

Detailed description

Features:

Zinc die-cast housing, nickel-plated
Screening factor: 5-1000MHz≥100dB
Low insertion loss,high return loss and isolation
Micro-strip circuit design and perfect performance index
All ports F-(f)connector,75 Ohm
Arched housing design, can pass the cable through housing

Specifications

Frequency Range (MHz)	Insertion Loss(dB)	Mutual Isolation(dB)	Return Loss(dB)
5-40	≤10.0	≥25	≥20
40-470	≤10.0	≥25	≥20
470-860	≤10.5	≥25	≥18
860-1000	≤11.0	≥22	≥17
