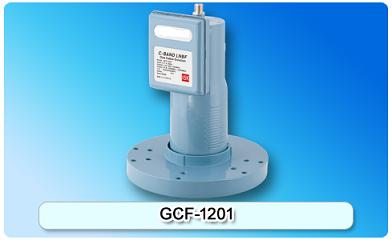

151038. GCF-1201 C-Band One Cable Solution LNBF(One Cable 1 Output)

One cable Solution with Single reception; Super low noise; Digital ready; High gain output; Easy installation; Weather Proof.

Detailed description

Item	Specification	Item	Specification
Input Frequency Range	3.70～4.20GHz	L.O. Phase Noise	-70dBc/Hz@10KHz -90dBc/Hz@100KHz -110dBc/Hz@1MHz
Output Frequency Range	H:950-1450MHz V:1550-2050MHz	Image Rejection	40dB(Min.)
Noise Figure	15°K(Typ.)	Output VSWR	2.5:1(Max.)
Conversion Gain	65dB(Typ.)	Output Power	0dBm (Min.)(at 1dB gain compression)
Gain Flatness	±1dB(36MHz)	Connector Type	75Ω Female Connector
Cross POL. Isolation	20dB(Typ.)	DC Current Consumption	150mA(Max.)
L.O. Frequency	H:5.150GHz V:5.750GHz	Input Reflector Type	Prime focus
L.O. Frequency Stability	±1.0MHz(Max.)@+25℃ ±2.0MHz(Max.)@-30℃～+70℃	F/D Ratio	0.28~0.42(Adjustable)
Operating Temperature	-30℃~+70℃	Power Supply	10-20V DC
