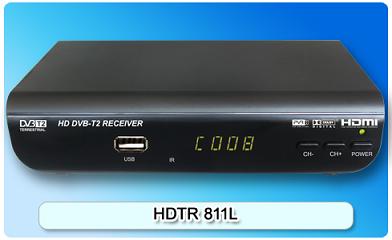

150311. HDTR 811L

Fully compliant with DVB-T2; USB2.0 for software update/PVR/media play back Full HD output in 720p,1080i,1080p HDCP protection Time shift supported with external hard drive disc; DVB subtitle supported.

Detailed description

Features:

Fully compliant with DVB-T2
USB2.0 for software update/PVR/media play back
Full HD output in 720p,1080i,1080p
HDCP protection
Time shift supported with external hard drive disc
DVB subtitle supported
Less than 0.5 Watt in standby
Multi-lingual OSD and user-friendly UI
Parental Control,Teletext,EPG supported
Support movie files with MPEG1/MPEG2/MPEG4/H264/VC-1/MOTION JPEG, so on.
Support music files with WMA/MP3/AAC(.wma/.mp3/.m4a)
Suport picture with JPEG, BMP, PNG

Specifications

DVB-T2 ANT Input/Demodulation
Connector Type	IEC-Female * 1 for ANT IN, IEC-Male * 1 for ANT LOOP
Input Frequency	(UHF)430∽858MHz,(VHF)147∽430MHz
Bandwidth	6,7,8MHz
Signal Input level	-78 ∽ -20dBm
Input Impedance	75Ohm
ANT Power	5V(On/Off), Imax=100mA
Demodulation Scheme	QPSK, 16-QAM, 64-QAM, 256-QAM
Demodulation Type	OFDM, fully compliant with DVB-T2 Standard
Media Features
Picture	JPEG,BMP,PNG
Power Supply
AC Input	100-240VAC@50/60Hz
Power Consumption	10Wmax
Memory
Flash	32Mbit
DDRII Memory	512Mbit
Physical Characteristics
Physical Size	168mm * 102mm * 35mm
Front Panel
Key	POWER, CH+, CH-
Indicator	LED Indicator for Power On/Off
Display	4 Digits 7-segment LED display
Remote Control Input	Infra-red receiver
Interface	1 * USB2.0 Interface
Rear Panel
Connector	2 * IEC connector for ANT IN and ANT LOOP
	1 * HDMI 1.3 Interface, up to 1080p
	1 * RCA3(CVBS, L/R)
	1 * COAXIAL
Remote Specifications
Battery	(AAA 1.5V)*2
Operation Distance	8m Min.（front distance from receiver）
Operation Angle Range	±45°(horizontal)，±20°(vertical)
