151203. GC-2G4C 2.4G Wireless A/V Sender
  • 151203. GC-2G4C 2.4G Wireless A/V Sender

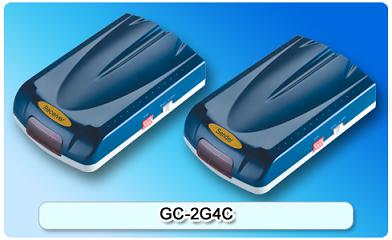

151203. GC-2G4C 2.4G Wireless A/V Sender

2.4GHz Wireless A/V Sender with 4 selectable channels; 433.92MHz infrared radio-control return feature; Antenna(2.4GHz) and remote control antenna(433.92MHz) are embedded into housing; Compatible with camcorder and CMOS camera application; Low power consumption.
Detailed description

Features:

  • 2.4GHz Wireless A/V Sender with 4 selectable channels
  • 433.92MHz infrared radio-control return feature
  • Antenna(2.4GHz) and remote control antenna(433.92MHz) are embedded into housing
  • Compatible with camcorder and CMOS camera application
  • Low power consumption
  • Support video transmission of NTSC or PAL and stereo audio transmission
  • The equipment realizes that several televisions share one set-top box or DVD
  • Transmission distance is up to 100 meters under unobstructed circumstance
  • Ideal for microwave anti-jamming capability

Specifications

TRANSMITTER

RECEIVER

Item

Specification

Item

Specification

Frequency Range

2400MHz-2483MHz

Frequency Range

2400MHz-2483MHz

Optional Channel Number

4CH(2414、2432、2450、2468MHz)

Optional Channel Number

4CH(2414、2432、2450、2468MHz)

Video Input Level

1 Vp-p

Video Output Level

1 Vp-p

Supply Voltage

9 V

Supply Voltage

9 V

Operating Temperature

0℃~+60℃

Operating Temperature

0℃~+60℃

Transmitter Power

10dBm(Typical)

Receiver Sensitivity

-85dBm(Minimum)

Frequency Stability

±100KHz(Typical)

Frequency Stability

±100KHz(Typical)

Audio Input Level

1 Vp-p(Typical)

Audio Output Level

1 Vp-p(Typical)

Current Consumption

90mA(Typical)

Current Consumption

200mA(Typical)

INFRARED RADIO-CONTROL

Frequency

433.92MHz

Receiver Sensitivity

-100dBm

Modulation/ Demodulation

ASK

Transmitter Power

10dBm(Typical)
