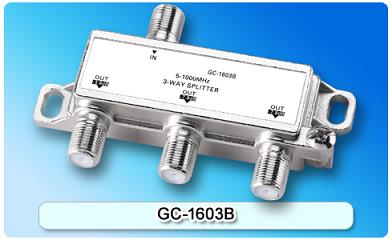

151442. GC-1603B 5-1000MHz 3-way Splitter

Zinc die-cast housing, nickel-plated; Screening factor: 5-1000MHz≥100dB; Easy installation with two edge hole sites; Low insertion loss,high return loss and isolation; Micro-strip circuit design and perfect performance index; All ports F-(f)connector,75 Ohm.

Detailed description

Features:

Zinc die-cast housing, nickel-plated
Screening factor: 5-1000MHz≥100dB
Easy installation with two edge hole sites
Low insertion loss,high return loss and isolation
Micro-strip circuit design and perfect performance index
All ports F-(f)connector,75 Ohm

Specifications

Frequency Range(MHz)	Insertion Loss(dB)	Mutual Isolation(dB)	Return Loss(dB)
5-40	≤3.5/7.0	≥30	≥20
40-470	≤3.6/7.2	≥25	≥20
470-860	≤3.8/7.5	≥25	≥20
860-1000	≤4.0/7.8	≥25	≥20
