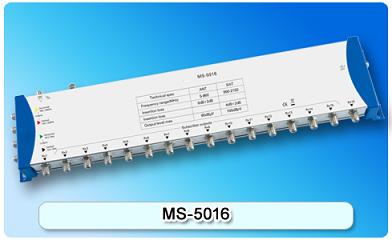

150634. MS-5016 5 in 16 Multiswitch, 5 In Series

Excellent quality tinplate housing and exquisite plastic case shell attached, making installation convenient; Excellent quality component, professional amplification design and low loss; An external 20V、700mA DC power offering more stable operation; 13/18V、0/22KHz supplied by satellite receiver through coaxial cable to switch corresponding portt.

Detailed description

Features:

Excellent quality tinplate housing and exquisite plastic case shell attached, making installation convenient
Excellent quality component, professional amplification design and low loss
An external 20V、700mA DC power offering more stable operation
13/18V、0/22KHz supplied by satellite receiver through coaxial cable to switch corresponding portt
Capable of connecting four SATV signals, one ANT signal or FM broadcast simultaneously
Four SATV signals switched through 13/18V、0/22KHz
Distributed into sixteen subscribers to use simultaneously and no mutual interference
Applicable to multi-satellite and multi-receiver usage

Specifications

Item	Specification	Item	Specification
Frequency Range ANT	5-860(MHz)	Return Loss ANT Input	12(dB)
Frequency Range SAT	950-2150 (MHz)	Return Loss Outputs	8(dB)
Insertion Loss ANT	6(dB)	Output Level ANT	85(dBuV)
Insertion Loss SAT	3(dB)	Output Level SAT	100(dBuV)
Isolation In-In SAT	25(dB)	Normal Working Voltage	12-20 (V)
Isolation In-In SAT/ANT	25(dB)	DC Power Consumption	45(mA)
Isolation Between Outputs	25(dB)	Supply Voltage	20V（±1）700mA
Switching Isolation SAT Inputs	28(dB)	Temperature Range	-20℃-60℃
Return Loss SAT Inputs	10(dB)	Impedance(all ports)	75(Ω)

Switching Voltage、Signal : 13/18V 、0/22KHz
Connectors:“F” type female
