150849. GS-3006 SAT 6-Way Splitter
  • 150849. GS-3006 SAT 6-Way Splitter

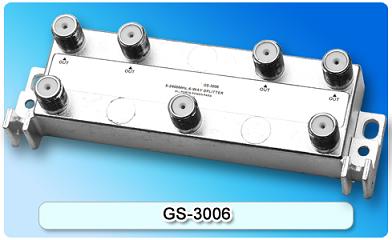

150849. GS-3006 SAT 6-Way Splitter

Zinc die-cast housing, tin-plated; Screening factor: 5-2400MHz≥100dB; Easy installation; Low insertion loss,high return loss and isolation; Micro-strip circuit design and perfect performance index; All ports F-(f)connector,75 Ohm.
Detailed description

Features:

  • Zinc die-cast housing, tin-plated
  • Screening factor: 5-2400MHz≥100dB
  • Easy installation
  • Low insertion loss,high return loss and isolation
  • Micro-strip circuit design and perfect performance index
  • All ports F-(f)connector,75 Ohm

Specifications

Frequency Range (MHz)

Insertion Loss(dB)

Mutual Isolation(dB)

Return Loss(dB)

5-40

≤10.5

≥20

≥10

40-1000

≤11.5

≥20

≥10

1000-1750

≤12.5

≥20

≥10

1750-2400

≤15.5

≥20

≥10
