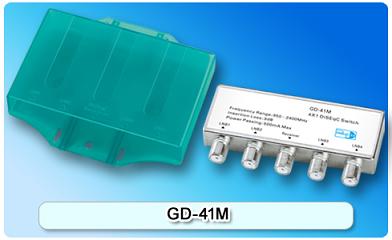

150541. GD-41M DiSEqC Switch 4 in 1, Water Proof

Zinc die-cast housing, nickel-plated; Excellent quality component, professional circuit design and low loss; Excellent quality chip, professional program design and compatible with more types of satellite receiver; Can work normally outdoors under unsheltered circumstance, exquisite plastic case shell attached.

Detailed description

Features:

Zinc die-cast housing, nickel-plated
Excellent quality component, professional circuit design and low loss
Excellent quality chip, professional program design and compatible with more types of satellite receiver
Can work normally outdoors under unsheltered circumstance, exquisite plastic case shell attached
DiSEqC 2.0, supports bi-directional DiSEqC full control functions
Select one of four satellite signals through DiSEqC commands supplied from satellite receiver
Utilize one coaxial cable to transmit control instruction and satellite signal simultaneously
Support DiSEqC “standby” command

Specifications

Item	Specification	Item	Specification
Frequency Range	950-2400(MHz)	Normal Working Voltage	12-20(V)
Insertion Loss	3(dB)	DC Power Consumption	10(mA)
Isolation	20(dB)	DC Max Power Passing	500(mA)
Return Loss	8(dB)	Impedance(all ports)	75(Ω)
