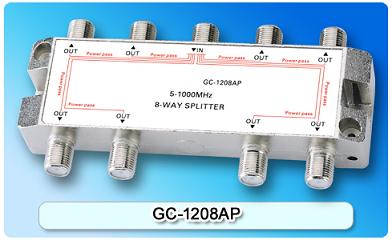

151430. GC-1208AP 5-1000MHz 8-way Splitter

Zinc die-cast housing, nickel-plated; Easy installation with two edge hole sites; Screening factor:5-1000MHz≥100dB; Power passing:30V 1A(MAX.); Indoor using; All ports F-(f) connector: 75Ohm.

Detailed description

Features:

Zinc die-cast housing, nickel-plated
Easy installation with two edge hole sites
Screening factor:5-1000MHz≥100dB
Power passing:30V 1A(MAX.)
Indoor using
All ports F-(f) connector: 75Ohm
-AP type power pass through all outputs to one input
Type number without.“Ap” means there is no power pass

Specifications

Frequency Range (MHz)	Insertion Loss(dB)	Mutual Isolation(dB)	Return Loss(dB)
5-40	≤11.0	≥25	≥20
40-470	≤11.5	≥28	≥20
470-860	≤12.0	≥25	≥18
860-1000	≤14.5	≥20	≥17
