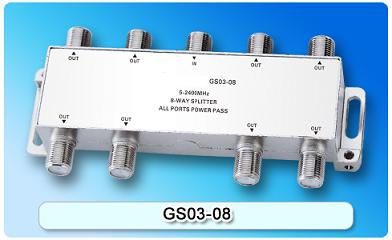

150816. GS03-08 SAT 8-Way Splitter

Zinc die-cast housing, nickel-plated; Easy installation, capable of passing cable thru housing bottom; Screening factor: 5-2400MHz≥100dB; Micro-strip circuit design and perfect performance index; Indoor using ndoor using Designed for SATV/CATV; Power passing-24V 0.8A(MAX.).

Detailed description

Features:

Zinc die-cast housing, nickel-plated
Easy installation, capable of passing cable thru housing bottom
Screening factor: 5-2400MHz≥100dB
Micro-strip circuit design and perfect performance index
Indoor using ndoor using Designed for SATV/CATV
Power passing-24V 0.8A(MAX.)
All ports F-(f)connector,75 Ohm

Specifications

Frequency Range (MHz)	Insertion Loss(dB)	Mutual Isolation(dB)	Return Loss(dB)
5-40	≤12.0	≥22	≥10
40-1000	≤12.0	≥22	≥12
1000-1750	≤14.0	≥22	≥12
1750-2400	≤16.0	≥20	≥10
