150830. GS07-02 SAT 2-Way Splitter
  • 150830. GS07-02 SAT 2-Way Splitter

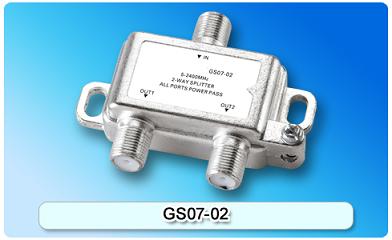

150830. GS07-02 SAT 2-Way Splitter

Zinc die-cast housing, tin-plated; Easy installation with two edge hole sites; Screening factor: 5-2400MHz≥100dB; Micro-strip circuit design and perfect performance index; Designed for SATV/CATV; Power passing-24V 0.8A(MAX.).
Detailed description

Features:

  • Zinc die-cast housing, tin-plated
  • Easy installation with two edge hole sites
  • Screening factor: 5-2400MHz≥100dB
  • Micro-strip circuit design and perfect performance index
  • Designed for SATV/CATV
  • Power passing-24V 0.8A(MAX.)
  • All ports F-(f)connector,75 Ohm

Specifications

Frequency Range (MHz)

Insertion Loss(dB)

Mutual Isolation(dB)

Return Loss(dB)

5-40

≤4.0

≥20

≥10

40-1000

≤4.5

≥20

≥10

1000-1750

≤5.0

≥20

≥10

1750-2400

≤5.5

≥20

≥10
