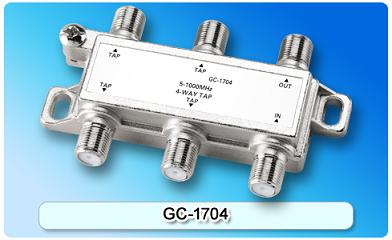

151540. GC-1704 5-1000MHz 4-way Tap

Zinc die-cast housing, nickel-plated; Screening factor: 5-1000MHz≥100dB; Easy installation with two edge hole sites; Low insertion loss,high return loss and isolation; Micro-strip circuit design and perfect performance index; All ports F-(f)connector,75 Ohm.

Detailed description

Features:

Zinc die-cast housing, nickel-plated
Screening factor: 5-1000MHz≥100dB
Easy installation with two edge hole sites
Low insertion loss,high return loss and isolation
Micro-strip circuit design and perfect performance index
All ports F-(f)connector,75 Ohm

Specifications

Item	Frequency Range	10	12	14	16	18	20	22	24	27	30
Insertion Loss (dB)	5-40(MHz)	3.5	3.0	2.5	2.0	2.0	1.2	1.2	1.0	1.0	1.0
	40-470(MHz)	3.5	3.5	2.5	2.0	2.0	1.2	1.2	1.0	1.0	1.0
	470-860(MHz)	3.8	3.5	2.8	2.2	2.2	1.5	1.5	1.2	1.2	1.2
	860-1000(MHz)	4.5	4.0	3.0	2.5	2.2	1.5	1.5	1.2	1.2	1.2
Tap Loss Tolerance (dB)	5-40(MHz)	±1.0
	40-470(MHz)	±1.0
	470-860(MHz)	±1.5
	860-1000(MHz)	±1.5
Mutual Isolation (dB)	5-40(MHz)	27	28	28	28	28	28	28	28	28	28
	40-470(MHz)	27	28	28	28	28	28	28	28	28	28
	470-860(MHz)	25	25	25	25	25	25	25	25	25	25
	860-1000(MHz)	25	25	25	25	25	25	25	25	25	25
Reverse Isolation (dB)	5-40(MHz)	28	26	26	30	30	32	40	40	40	40
	40-470(MHz)	28	26	26	30	30	32	40	40	40	40
	470-860(MHz)	25	25	25	28	28	30	32	32	38	38
	860-1000(MHz)	25	22	23	25	27	27	28	28	28	28
Return Loss (dB)	5-40(MHz)	20	20	20	20	20	20	20	20	20	20
	40-470(MHz)	20	20	20	20	20	20	20	20	20	20
	470-860(MHz)	18	18	18	18	18	18	18	18	18	18
	860-1000(MHz)	18	18	18	18	18	18	18	18	18	18
