151040. GCF-22S4 C-Band One Cable Solution LNBF(One Cable 4 Output)
  • 151040. GCF-22S4 C-Band One Cable Solution LNBF(One Cable 4 Output)

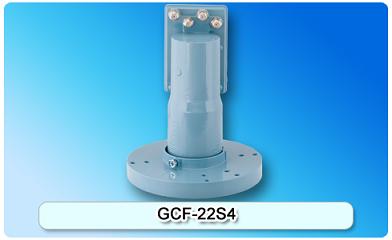

151040. GCF-22S4 C-Band One Cable Solution LNBF(One Cable 4 Output)

One cable Solution with four reception; Super low noise; Digital ready; High gain output; Easy installation; Weather Proof.
Detailed description

Features:

  • One cable Solution with four reception
  • Super low noise
  • Digital ready
  • High gain output
  • Easy installation
  • Weather Proof

Specifications

Item

Specification

Item

Specification

Input Frequency Range

3.70~4.20GHz

L.O. Phase Noise -70dBc/Hz@10KHz
-90dBc/Hz@100KHz
-110dBc/Hz@1MHz
Output Frequency Range

H:950-1450MHz
V:1550-2050MHz

Image Rejection 40dB(Min.)
Noise Figure 15°K(Typ.) Output VSWR 2.5:1(Max.)
Conversion Gain 65dB(Typ.) Output Power 0dBm (Min.)(at 1dB gain compression)
Gain Flatness ±1dB(36MHz) Connector Type 75Ω Female Connector
Cross POL. Isolation 20dB(Typ.) DC Current Consumption 150mA(Max.)
L.O. Frequency H:5.150GHz
V:5.750GHz
Input Reflector Type Prime focus
L.O. Frequency Stability ±1.0MHz(Max.)@+25℃
±2.0MHz(Max.)@-30℃~+70℃
F/D Ratio 0.28~0.42(Adjustable)
 Operating Temperature  -30℃~+70℃ Power Supply 10-20V DC
