152302. GC03-01 SAT/ANT Diplexer
  • 152302. GC03-01 SAT/ANT Diplexer

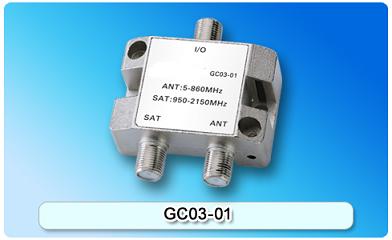

152302. GC03-01 SAT/ANT Diplexer

Zinc die-cast housing, tin-plated; Light weight and compact size; Frequency range:5-2150MHz; F-female connector 75Ohm; DC power passing : 24V DC 500mA(MAX).
Detailed description

Features:

  • Zinc die-cast housing, tin-plated
  • Light weight and compact size
  • Frequency range:5-2150MHz
  • F-female connector 75Ohm
  • DC power passing : 24V DC 500mA(MAX)

Specifications

Item

Frequency Range(MHz)

Insertion Loss(dB)

Return Loss(dB)

IN-ANT

5-862

≤20.0

≥10.0

950-2150

≥20.0

IN-SAT

5-862

≥20.0

950-2150

≤3.0
