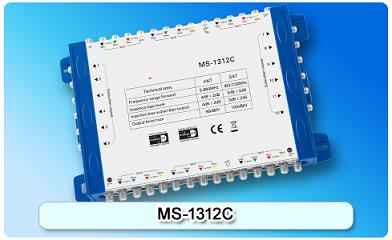

150677. MS-1312C Cascadable Multiswitch of 13 in 12, 13 In Series
  • 150677. MS-1312C Cascadable Multiswitch of 13 in 12, 13 In Series

150677. MS-1312C Cascadable Multiswitch of 13 in 12, 13 In Series

Excellent quality tinplate housing and exquisite plastic case shell attached, making installation convenient; Excellent quality component, professional amplification design and low loss; External 20V 2000mA DC power offering more stable operation; 13/18V 0/22KHz DiSEqC 1.0/2.0 supplied by satellite receiver through coaxial cable to switch corresponding port.
Detailed description


Features:

  • Excellent quality tinplate housing and exquisite plastic case shell attached, making installation convenient
  • Excellent quality component, professional amplification design and low loss
  • External 20V 2000mA DC power offering more stable operation
  • 13/18V 0/22KHz DiSEqC 1.0/2.0 supplied by satellite receiver through coaxial cable to switch corresponding port
  • Capable of connecting twelve SATV signals, one ANT signal or FM broadcast simultaneously
  • Twelve SATV signals switched through 13/18V 0/22KHz DiSEqC 1.0/2.0 from satellite receiver
  • Thirteen input signals cascadable and distributed into eight subscribers to use simultaneously and no mutual interference
  • Red LED for power, Yellow LED for power link
  • Supports multi-satellite multi-receiver and cascadable usage

Specifications


Item

Specification

Item

Specification

Frequency Range ANT

5-860(MHz)

Return Loss SAT Inputs

10(dB)

Frequency Range SAT

950-2150 (MHz)

Return Loss ANT Input

12(dB)

Insertion Loss ANT

5(dB)

Return Loss Outputs

8(dB)

Insertion Loss SAT

4(dB)

Output Level ANT

88(dBuV)

Insertion Loss Trunk

5(dB)

Output Level SAT

100(dBuV)

Isolation In-In SAT

25(dB)

Normal Working Voltage

12-20(V)

Isolation In-In SAT/ANT

25(dB)

DC Power Consumption

50(mA)

Isolation Between Outputs

25(dB)

Supply Voltage(VDC)

20V(±1)3000mA

Switching Isolation SAT Inputs

28(dB)

Temperature Range

-20℃-60℃

Cross Isolation

25(dB)

Impedance(all ports)

75(Ω)



Switching Voltage、Signal : 13/18V 、0/22KHz、DiSEqC 1.0,2.0
Connectors:“F” type female
