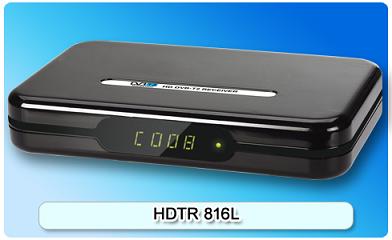

150308. HDTR 816L

Fully compliant with DVB-T2 ; USB2.0 for software update/PVR/media play back; Full HD output in 720p,1080i,1080p; HDCP protection; Time shift supported with external hard drive disc ; DVB subtitle supported.

Detailed description

Features:

Fully compliant with DVB-T2
USB2.0 for software update/PVR/media play back
Full HD output in 720p,1080i,1080p
HDCP protection
Time shift supported with external hard drive disc
DVB subtitle supported
Less than 0.5 Watt in standby
Multi-lingual OSD and user-friendly UI
Parental Control,Teletext,EPG supported
Standard Russian OSD menu design

Specifications

DVB-T2 ANT Input/Demodulation
Connector Type	IEC-Female * 1 for ANT IN, IEC-Male * 1 for ANT OUT
Input Frequency	(UHF)430∽858MHz,(VHF)147∽430MHz
Bandwidth	6,7,8MHz
Signal Input level	-78 ∽ -20dBm
Input Impedance	75Ohm
ANT Power	5V(On/Off), Imax=100mA
Demodulation Scheme	QPSK, 16-QAM, 64-QAM, 256-QAM
Demodulation Type	OFDM, fully compliant with DVB-T2 Standard
Media Features
Picture	JPEG,BMP,PNG
Power Supply(Adapter)
DC Input	5V 2Amax
Power Consumption	10Wmax
Memory
Flash	32Mbit
DDRII Memory	512Mbit
Physical Characteristics
Physical Size	150mm * 99mm * 27mm
Front Panel
Remote Control Input	Infra-red receiver
Indicator	LED Indicator for Power On/Off
Rear Panel
Connector	2 * IEC connector for ANT IN and RF OUT
	1 * HDMI 1.3 interface up to 1080p
	1 * AV RCA3(CVBS, L/R)
	1 * USB2.0 interface
Remote Specifications
Battery	(AAA 1.5V)*2
Operation Distance	8m Min.（front distance from receiver）
Operation Angle Range	±45°(horizontal)，±20°(vertical)
