150556. GD-1611 Hi-isolation and short-circuit protection 17 in 1 DiSEqC switch
  • 150556. GD-1611 Hi-isolation and short-circuit protection 17 in 1 DiSEqC switch

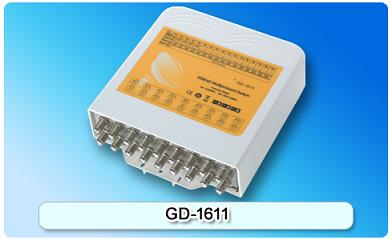

150556. GD-1611 Hi-isolation and short-circuit protection 17 in 1 DiSEqC switch

Capable of connecting sixteen SATV signals, one ANT signal or FM broadcast ;simultaneously,The inputs are controlled from a receiver and there are 4 modes of control which can be selected by a DIP switch Excellent quality tin-plate housing and exquisite plastic case shell attached, Can work normally outdoors under unsheltered circumstance; Excellent quality component, professional circuit design and low loss.
Detailed description

Features:

  • Capable of connecting sixteen SATV signals, one ANT signal or FM broadcast simultaneously,The inputs are controlled from a receiver and there are 4 modes of control which can be selected by a DIP switch
  • Excellent quality tin-plate housing and exquisite plastic case shell attached, Can work normally outdoors under unsheltered circumstance
  • Excellent quality component, professional circuit design and low loss
  • Excellent quality chip, professional program design and compatible with more types of satellite receiver
  • 30dB isolation and minimize the mutual interference
  • Short-circuit protection design ensures more secure usage
  • Utilize one coaxial cable to transmit control and SAT/ANT signal simultaneously

Specifications

Item

Specification

Item

Specification

Frequency Range SAT

950-2400(MHz)

Normal Working Voltage

12-20(V)

Frequency Range ANT

5-860(MHz)

DC Power Consumption

10(mA)

Insertion Loss

5(dB)

DC Max Power Passing

500(mA)

Isolation

30(dB)

Impedance(all ports)

75(Ω)

Return Loss

8(dB)
