152305. GC04-02 SAT/ANT Diplexer
  • 152305. GC04-02 SAT/ANT Diplexer

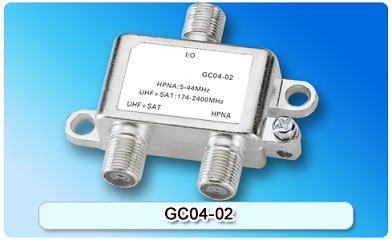

152305. GC04-02 SAT/ANT Diplexer

Zinc die-cast housing,tin-plated; Light weight and compact size; Frequency range:5-2400MHz; F-female connector 75Ohm; DC power passing: 24VDC 500mA (MAX.).
Detailed description

Features:

  • Zinc die-cast housing,tin-plated
  • Light weight and compact size
  • Frequency range:5-2400MHz
  • F-female connector 75Ohm
  • DC power passing: 24VDC 500mA (MAX.)

Specifications

Item

Frequency Range(MHz)

Parameter(dB)

Return Loss(dB)

HPNA

5-44

1.0

20

174-2400

40

DTT+DTH

5-44

35

12

174-2400

1.2
